Down Pants Filling Machine

42W | 4 Ports| 1000 Jackets Daily

Flow control: Touch Sceen adjust the flow

Filling range: 0.1-3g

Nozzle size: 19mm,25mm

Filling materials: Feather down, Polyester fiber

Power supply: 1 Phase AC220V 3.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.5*3.0(LW)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

Model42W (4 Ports,Flow Control)
Flow ControlAutomatic adjust the flow by Touch Screen and PLC System
Filling Materials50-95% Goose Down, Duck Down
Filling Materials0.9-3D/22-32mm Polyester Fiber, Ball Fiber
ApplicationDown Jacket, Pants, Vests, Scarf, Gloves
Daily Capacity800-1000 Jackets
Storage Capacity7-10Kg
Driven TypePneumatic
Weight(Kg)N.W400, G.W560
CertificateCE

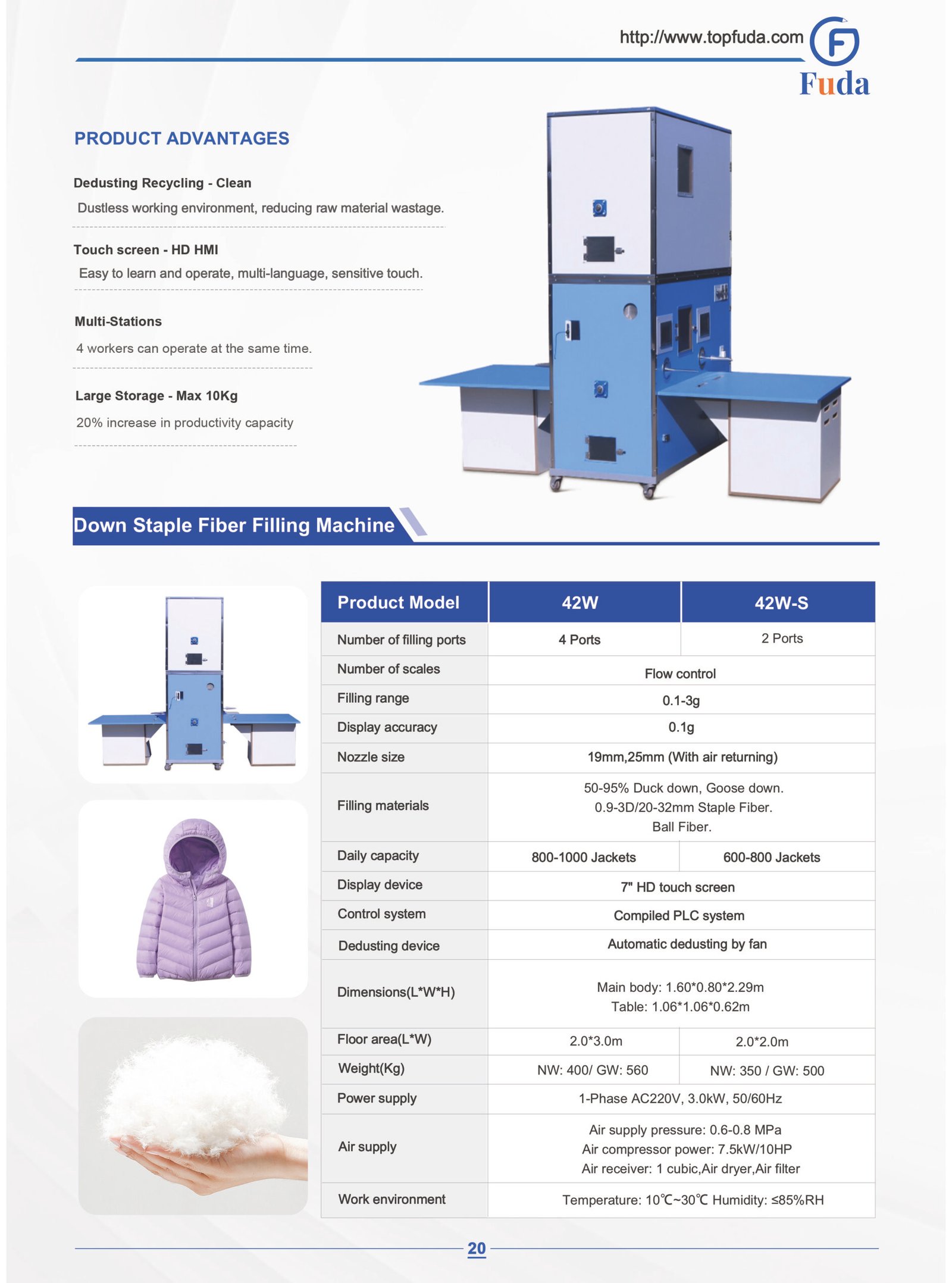

Download 42W Technical Datasheet (PDF)

Live Operation: Accuracy Microlight Down Jacket Filling

Packing and Delivery

fuda 46f wooden case teddy bear stuffing machine
fuda 46f wooden case stuffed animal stuffing machine
fuda 46f wooden case automatic pillow cushion filling machine

Description

Overview: High-Speed Multi-Station Apparel Production The FUDA 42W is a highly efficient 4-port automatic down and staple fiber filling machine engineered for continuous, high-volume apparel manufacturing. By utilizing an advanced flow control system rather than traditional weighing scales, this commercial outerwear stuffing equipment allows four operators to work simultaneously, effortlessly achieving a daily output of 800 to 1,000 jackets.
Core Features & Innovations
Ultra-Fine 0.1-3g Flow Control: Specifically designed for micro-baffles and intricate garment sections, the flow control mechanism expertly handles minute 0.1-3g payloads with a 0.1g display accuracy.
Clean Dedusting Recycling: Equipped with an automatic fan-driven dedusting device, it ensures a clean, dustless working environment while actively reducing raw material wastage.
Expanded 10Kg Storage Capacity: The large 10Kg storage hopper reduces the frequency of manual material refilling, directly increasing overall production capacity by 20%.
Intelligent HD Touch Screen: Operators easily manage the system via a highly sensitive 7″ multi-language HMI touch screen powered by a fast compiled PLC system.

Application Scenarios
Fitted with 19mm and 25mm air-returning nozzles, the 42W is an essential piece of apparel factory machinery for OEMs focusing on lightweight garments. It is expertly designed for the rapid manufacturing of premium lightweight down jackets, synthetic down vests, and intricate outdoor wear utilizing both natural down and modern fiber balls.

Market Dynamics & Industry Trends
Why integrate the 42W Flow Control Filler?
The Rise of Lightweight Outerwear: Consumer demand is shifting heavily toward ultra-lightweight, packable down jackets featuring complex micro-baffles. The 42W’s specialized 0.1-3g flow control makes it the perfect machine to capitalize on this trend.
Factory Health & Safety: Modern garment factories must prioritize worker health. The 42W’s integrated dust recycling system provides a clean, dustless environment while simultaneously saving expensive raw materials from being wasted.
Maximizing Workforce Density: The 4-port multi-station design allows four workers to operate at the same time within a highly compact 2.0*3.0m footprint, vastly multiplying your factory’s square-meter efficiency.

About FUDA Intelligent Equipment
Shanghai FUDA Intelligent Equipment Co., Ltd. has engaged in the automatic apparel and home textile equipment field since 2010. As a modern enterprise integrating R&D, production, sales, and comprehensive after-sales service, we provide high-quality automation. Backed by over 18 years of technical application experience, the “FUDA” brand proudly empowers over 7,000 global users and partners with 50+ global cooperative distributors.
