Goose Down Filling Machine

8T6D | 2 Ports 8 Scales | 800 Coats Daily

Filling range: 0.2-35g

Display accuracy: 0.01g

Nozzle sizes: 19mm, 25mm

Filling materials: Goose down, Polyester fiber

Power supply: 1 Phase AC220V 3.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.5 × 3.5m(LW)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

Model8T6D(2 Filling Ports, 8 Weighing Scales)
Filling Accuracy± 0.1g – 0.3g
Filling Speed800 – 1200 fillings / hour
Filling Range0.2g – 35g (Customizable)
Display Device10″ HD Touch Screen
Control SystemPLC system
ApplicationDown Jacket, Down Vest, Down Pants, Sleeping Bag, Hammock
Filling MaterialsFeather Down, Staple Fiber, Ball Fiber
Weight(Kg)N.W. 750, G.W. 950
CertificateCE

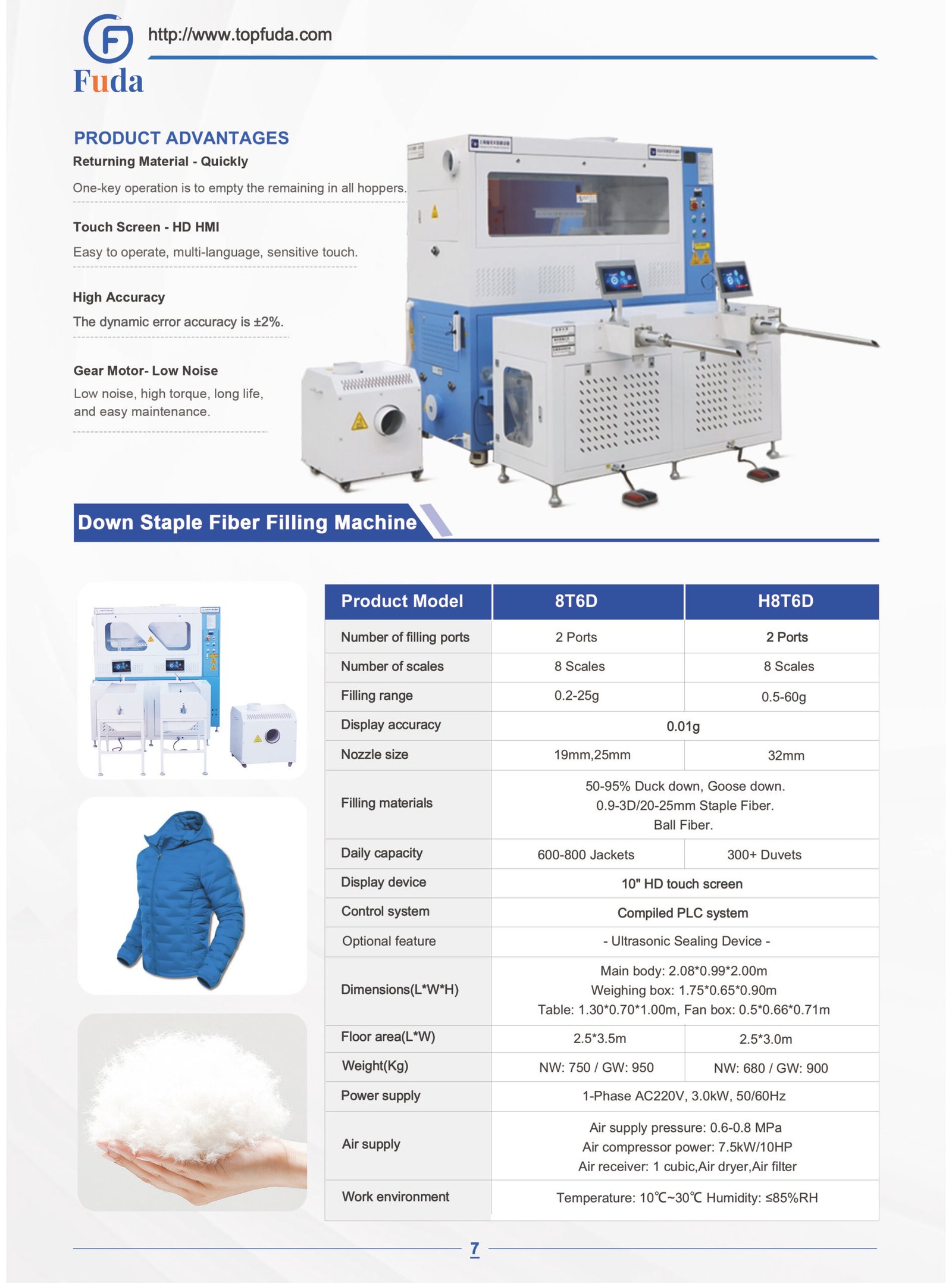

Download 8T6D Technical Datasheet (PDF)

Live Operation: Accuracy Duvet Filling

Packing and Delivery

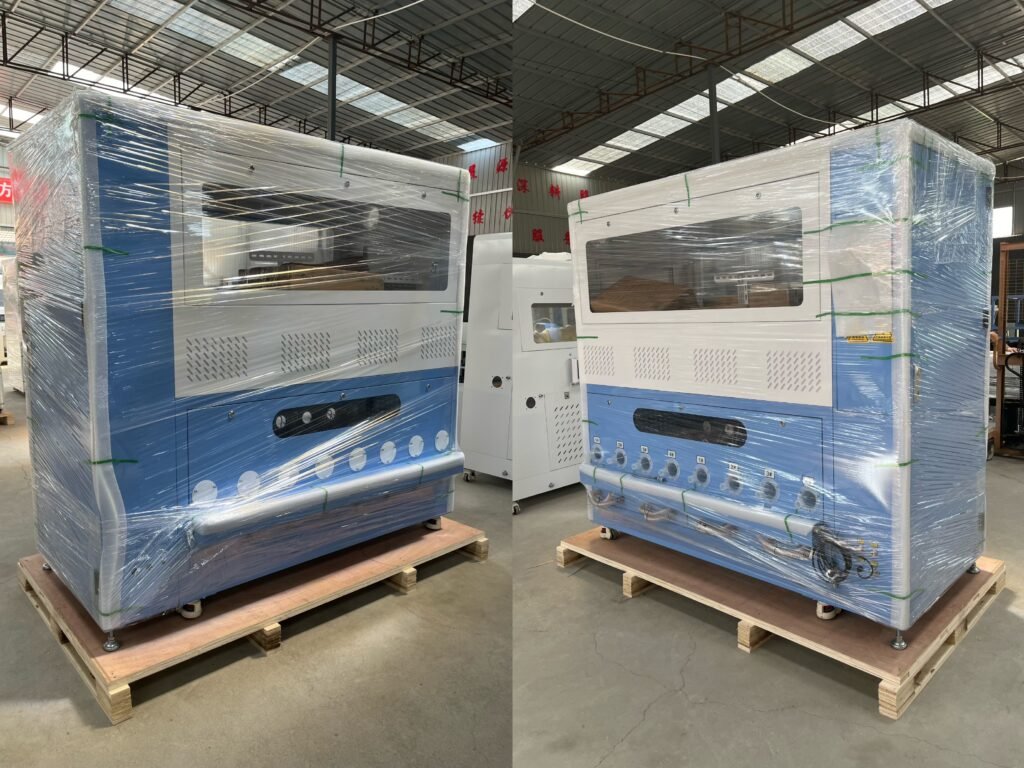

fuda 8t6d wooden case dual head feather down jacket filling machine

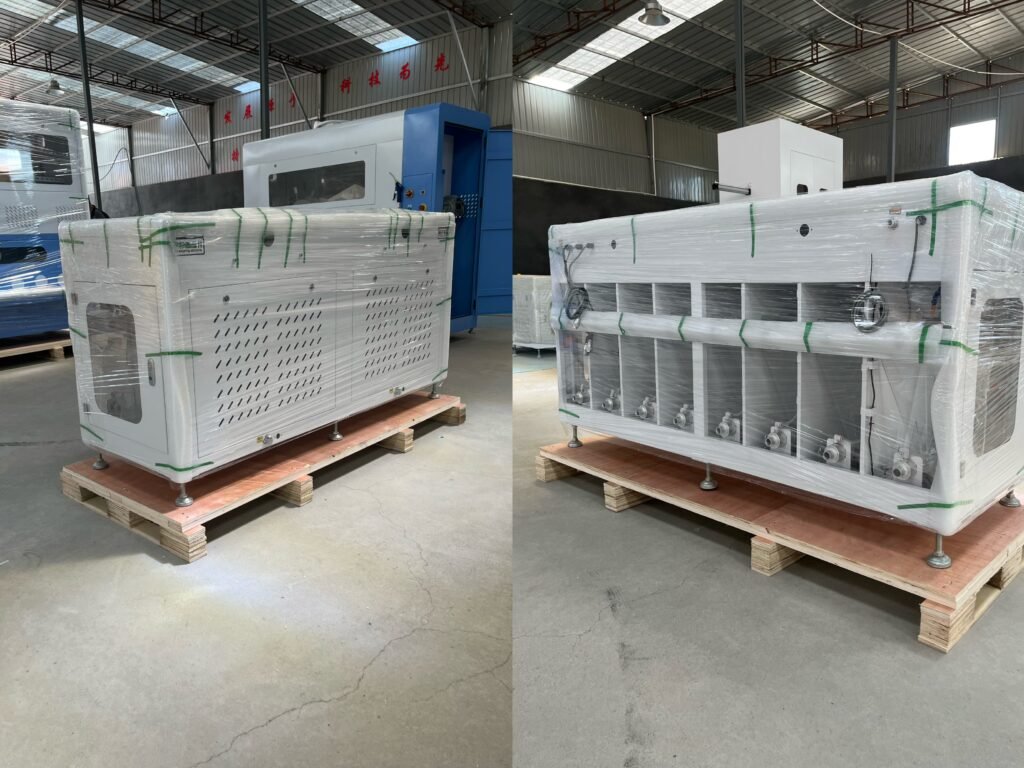

fuda 8t6d wooden case two ports staple fiber coat filling machine

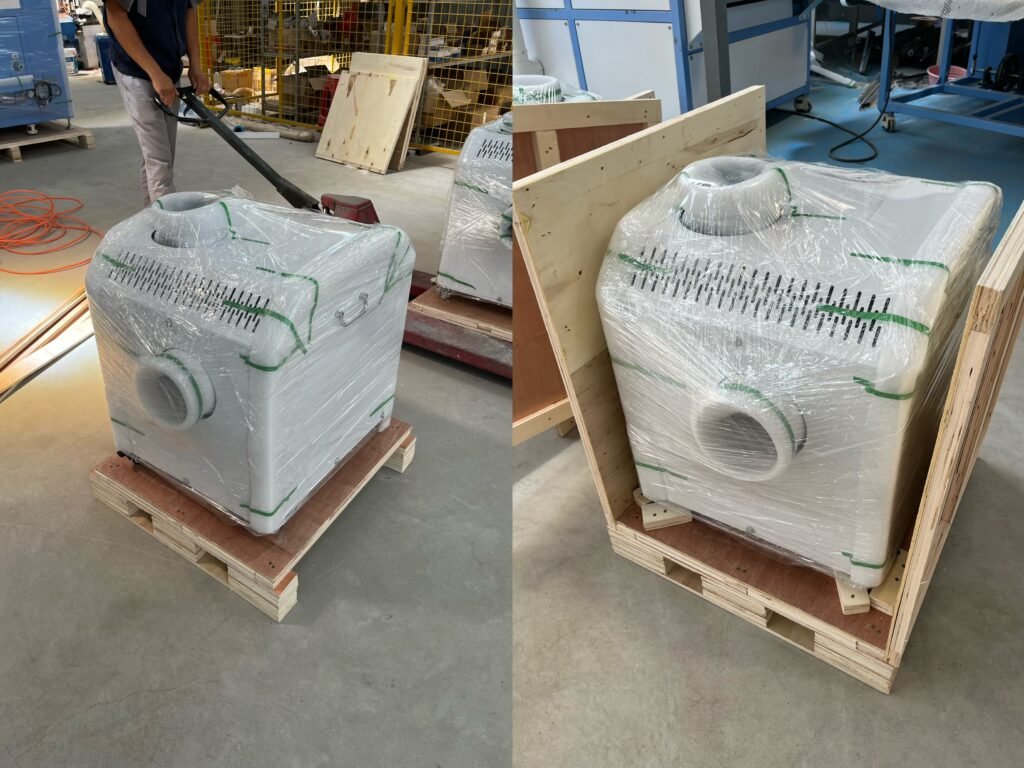

fuda 8t6d wooden case eight scales automatic real down filling machine

Description

Overview:
The Smart Solution for Outerwear Manufacturing  The FUDA 8T6D is a highly efficient dual-port fiber filling equipment for apparel, designed to upgrade your winter clothing production line. Configured with 8 precision scales, this industrial goose down injection machine flawlessly handles duck down, goose down, and synthetic staple fibers. It delivers consistent quality while easily processing 600 to 800 jackets daily, making it the perfect automatic weighing and filling machine for winter coats.
Core Features & Advantages
1. 8-Scale High-Precision Dispensing Engineered to minimize material waste during premium outerwear manufacturing. The dynamic error accuracy is strictly controlled at ±2%. It perfectly manages micro-payloads ranging from 0.2-25g with a highly visible 0.01g display accuracy.
2. Intelligent PLC & Multi-Language HMI Driven by the new FUDA compiled PLC system and a 10-inch HD touch screen, the intuitive interface significantly reduces operator training time for your apparel factory automation setup.
3. One-Key Quick Material Return Maximize raw material efficiency. The built-in rapid return system allows operators to empty all remaining material in the hoppers with a single keystroke, simplifying color or material changeovers on your garment assembly line.
4. Versatile Anti-Clog Injectors Comes standard with 19mm and 25mm nozzles designed to prevent blockages, ensuring smooth and continuous padding for high-precision sleeping bag manufacturing and puffer jacket production.
5. Premium Hardware & Easy Maintenance Built with a high-torque, low-noise gear motor that improves the factory floor environment and guarantees a long operational lifespan with minimal upkeep.
6. Optional Upgrade: Seamless Ultrasonic Sealing Take your garment quality to the next level. The optional ultrasonic sealer creates a clean, durable, and needle-free closure for the filling ports, eliminating the risk of down leakage in high-end winter apparel production.
Application Scenarios
The 8T6D model is a versatile solution designed for the modern apparel and home textile industries. It is highly recommended for the high-volume production of premium down jackets, winter vests, down pants, and sleeping bags. The system flawlessly handles a wide variety of stuffing materials, including 50-95% duck or goose down, ball fiber, and 0.9-3D/20-25mm staple fiber.
About FUDA
Shanghai FUDA Intelligent Equipment Co., Ltd. has been a pioneer in the automatic apparel equipment field since 2010. As a modern enterprise integrating R&D, production, sales, and after-sales service, we bring over 18 years of deep expertise in filling technology applications. Today, the “FUDA” brand is globally recognized for its exceptional quality and reliability, proudly serving over 7,000 users worldwide in collaboration with 50+ international distributors.
