Down Filling Machine

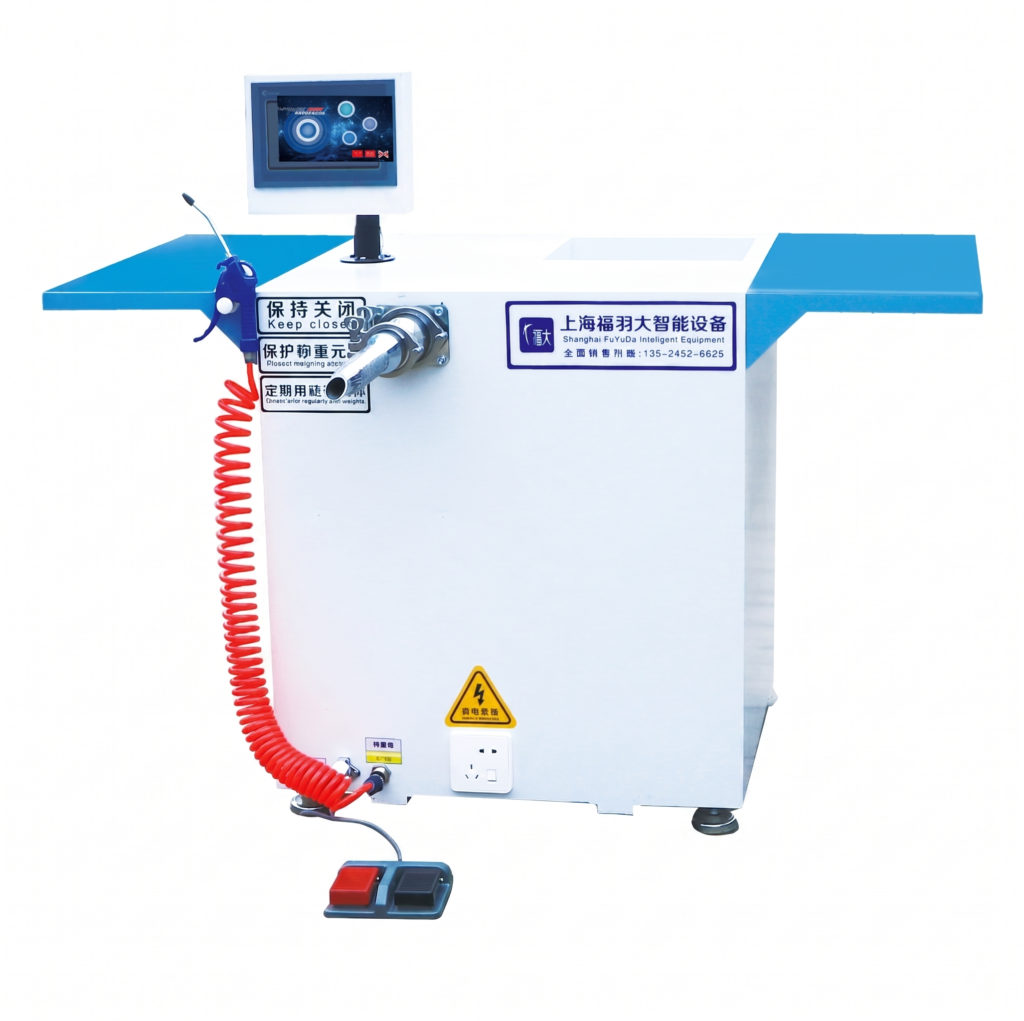

S11E | 1 Port 1 Scale | 30 Duvets Daily

Filling range: 2-80g

Display accuracy: 0.1g

Nozzles size: 25mm,38mm

Filling materials: Goose down, Polyester fiber

Power supply: 1 Phase AC220V 1.0kW 50Hz

Air supply: 0.6-0.8MPa, Air compressor: 2.2kW

Footprint: 1.5*1.5(LW)

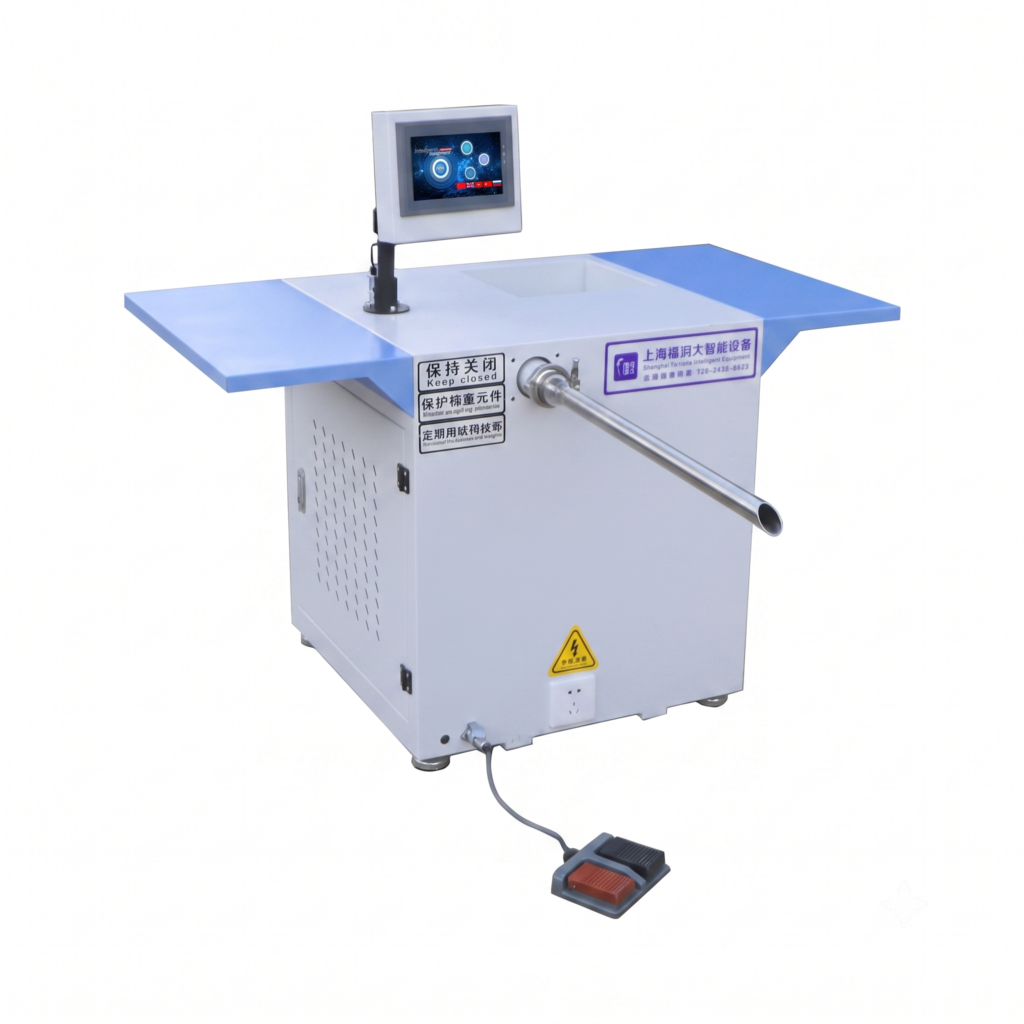

S12E | 1 Port 1 Scale | 30 Duvets Daily

Filling range: 2-80g

Display accuracy: 0.1g

Nozzles size: 32mm

Filling materials: Goose down, Polyester fiber

Power supply: 1 Phase AC220V 1.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 2.2kW

Footprint: 1.5*1.5(LW)

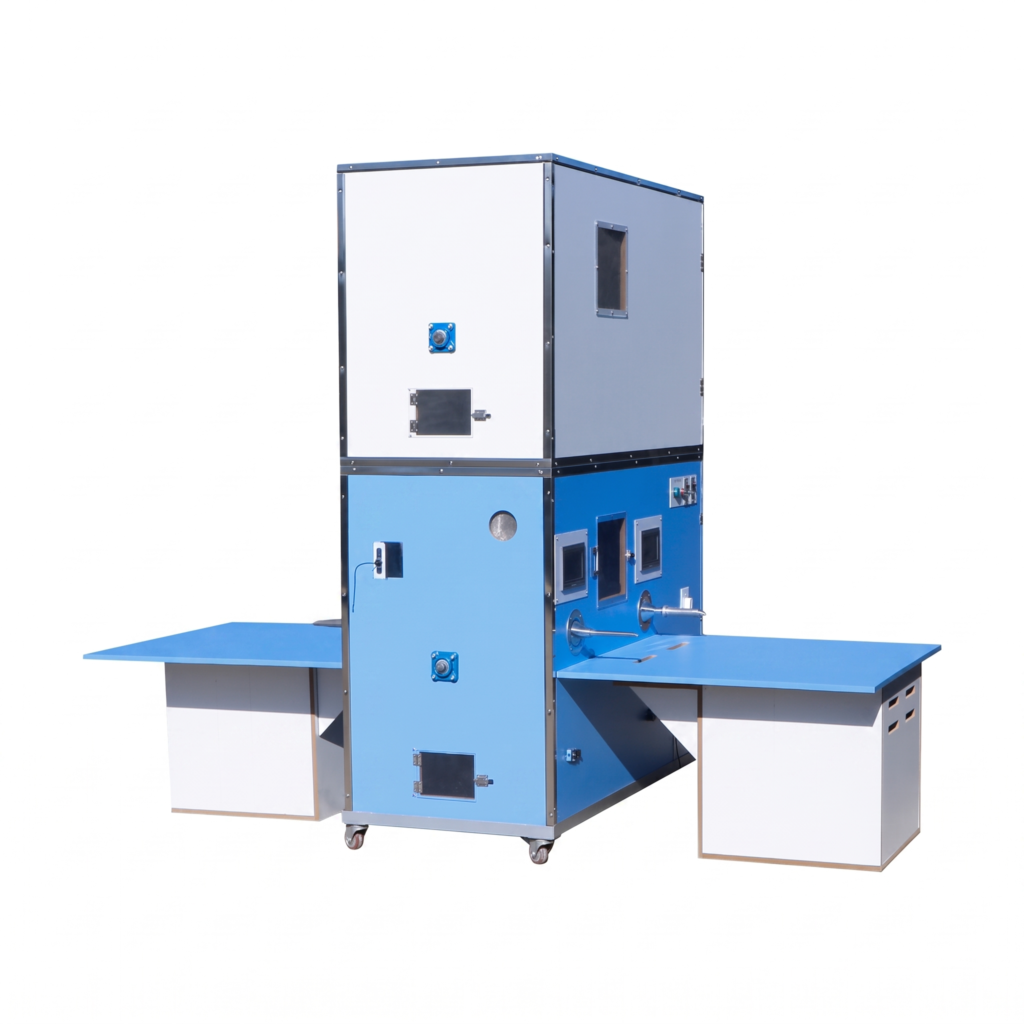

42W | 4 Ports| 1000 Jackets Daily

Flow control: Touch Sceen adjust the flow

Filling range: 0.1-3g

Nozzle size: 19mm,25mm

Filling materials: Feather down, Polyester fiber

Power supply: 1 Phase AC220V 3.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.5*3.0(LW)

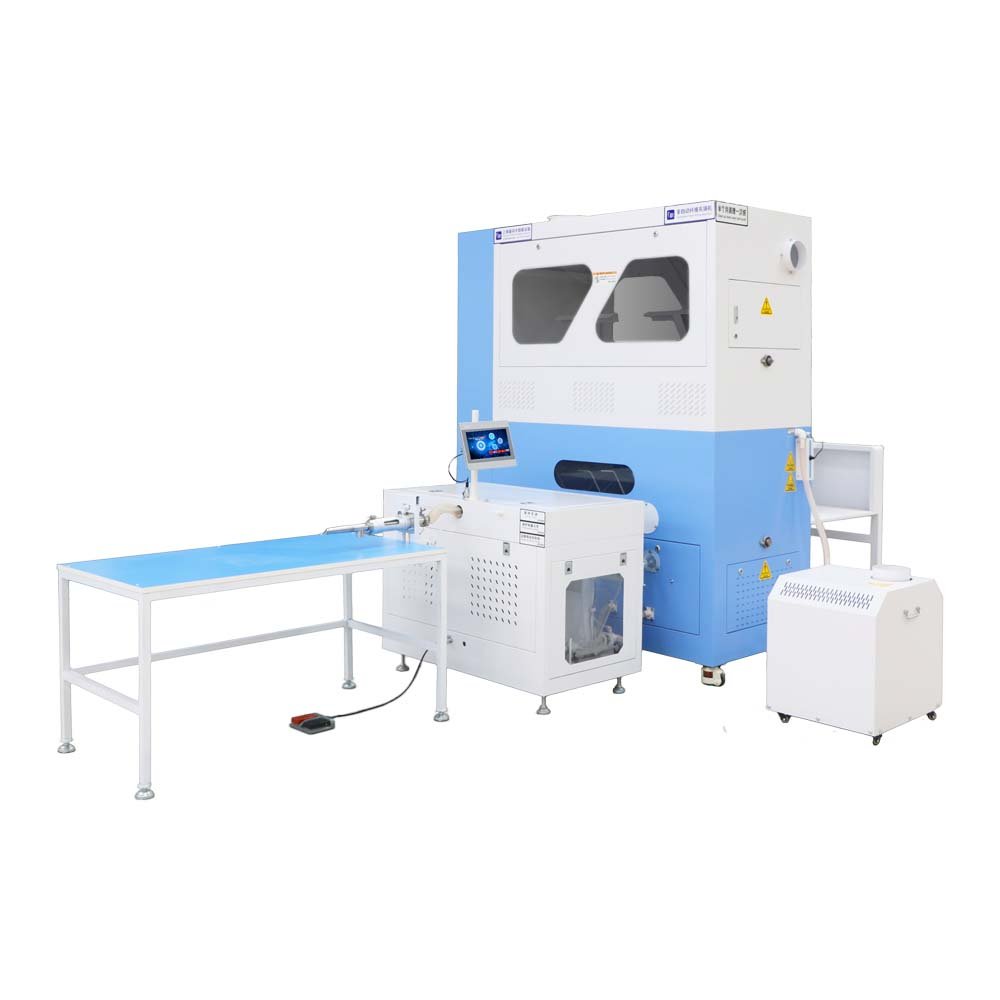

48T-W | 3 Ports 4 Scales | 800 Jackets Daily

Filling range: 0.2-35g

Display accuracy: 0.1-3g

Nozzle size: 19mm,25mm

Filling materials: Feather down, Polyester fiber

Power supply: 1 Phase AC220V 3.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.5*4.0(LW)

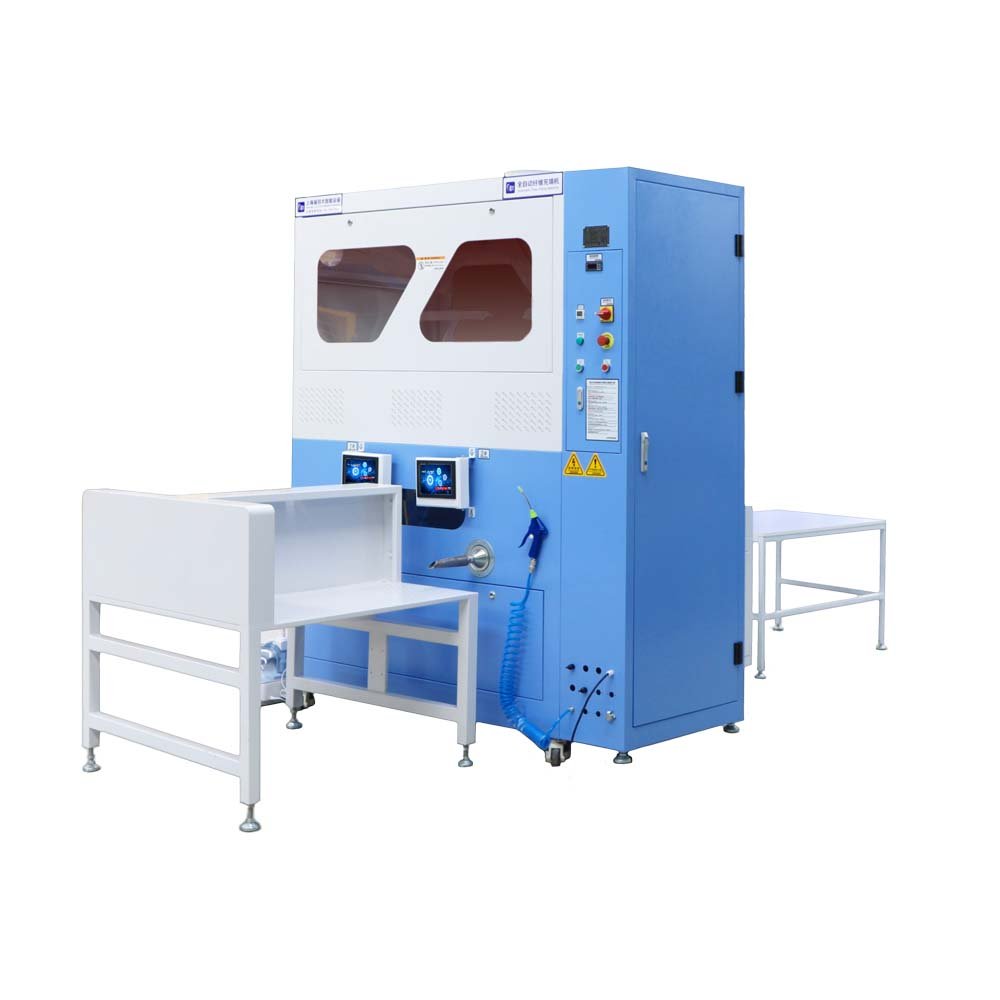

48T | 4 Ports| 1000 Jackets Daily

Flow control: Touch Sceen adjust the flow

Filling range: 0.1-3g

Nozzle size: 19mm,25mm

Filling materials: Feather down, Polyester fiber

Power supply: 1 Phase AC220V 3.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.5*3.0(LW)

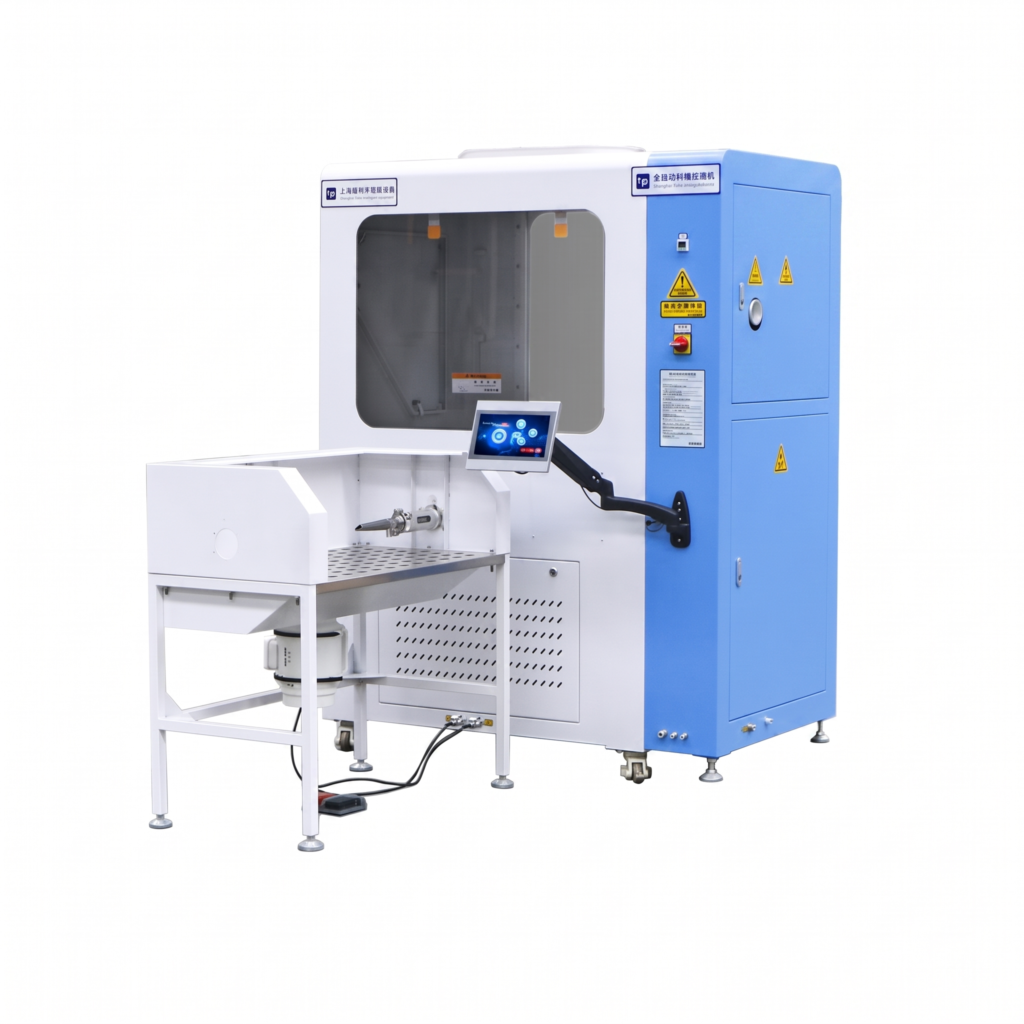

416C | 1 Port 4 Scales | 200 Jackets Daily

Filling range: 0.2-35g

Display accuracy: 0.01g

Nozzles size: 19mm, 25mm

Filling materials: Goose down, Polyester fiber

Power supply: 1 Phase AC220V 2.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 1.5*2.5(LW)
