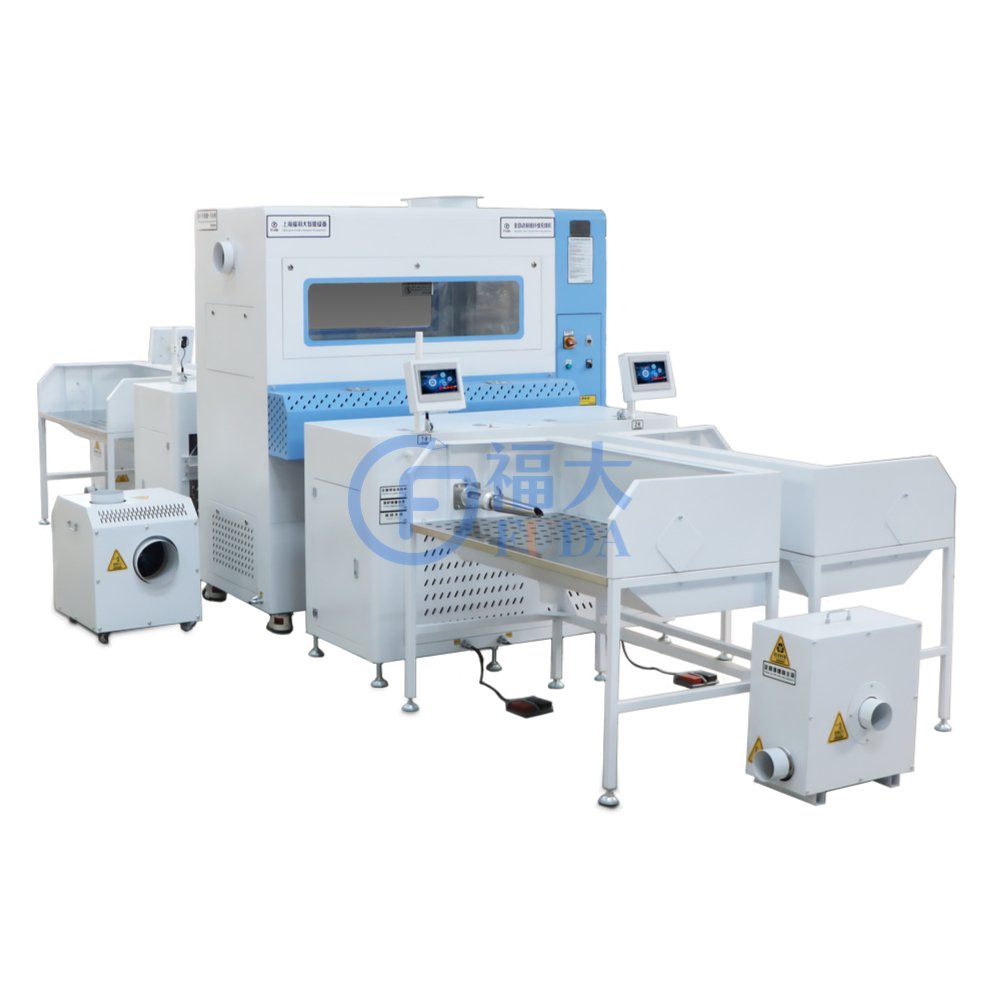

image 8f8d fuda four head polyester ball fiber filling machine

Synthetic Fiber Blowing Machine

8F8D | 4 Ports 8 Scales | 1200 Coats Daily

Filling range: 0.5-90g

Display accuracy: 0.01g

Nozzle size: 25mm, 38mm

Filling materials: Goose down, Polyester fiber

Power supply: 3 Phase AC380V 3.7kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.5*4.0(LW)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

Model8F8D (4 Ports,8 Scales)
Filling Accuracy± 0.5g – 1.0g
Filling Speed800 – 1200 fillings / hour
Filling Range0.5g – 90g (Customizable)
Display Device7″ HD Touch Screen
Control SystemPLC system
ApplicationDown Jacket, Vest, Pants, Duvet, Sleeping Bag, Hammock
Filling MaterialsFeather Down, Staple Fiber, Ball Fiber
Weight(Kg)N.W790, G.W1100
CertificateCE
Download 8F8D Technical Datasheet (PDF)

Live Operation: Accuracy Coat Filling

Packing and Delivery

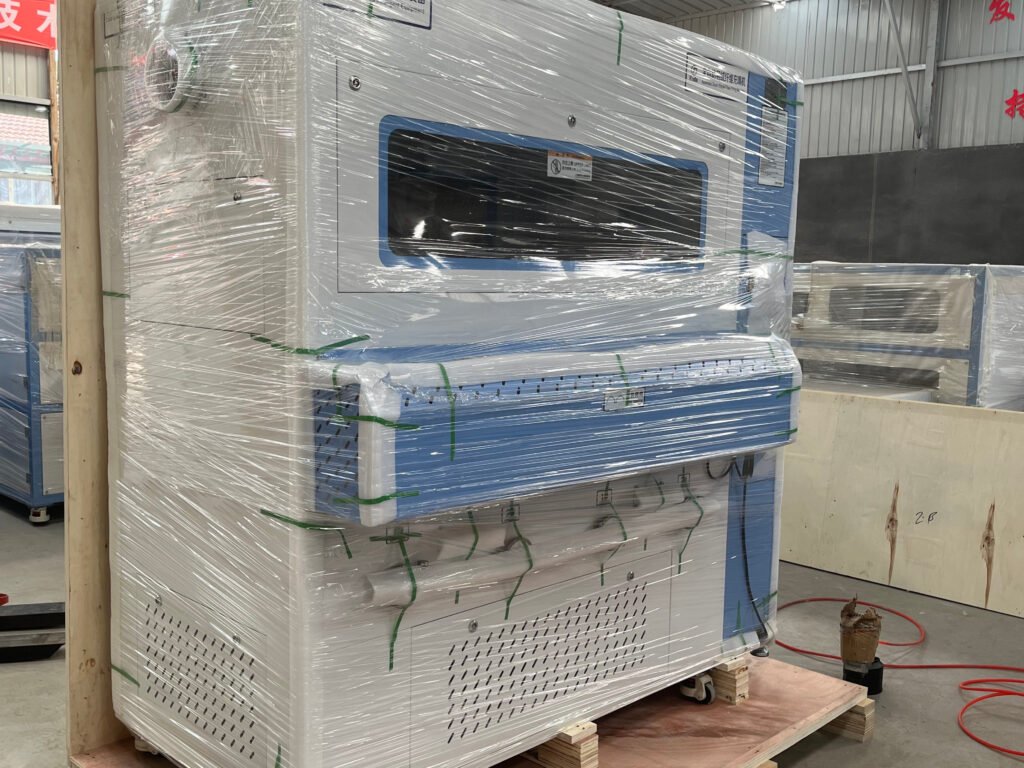

fuda 8f8d wooden case automatic polyester fiber filling machine

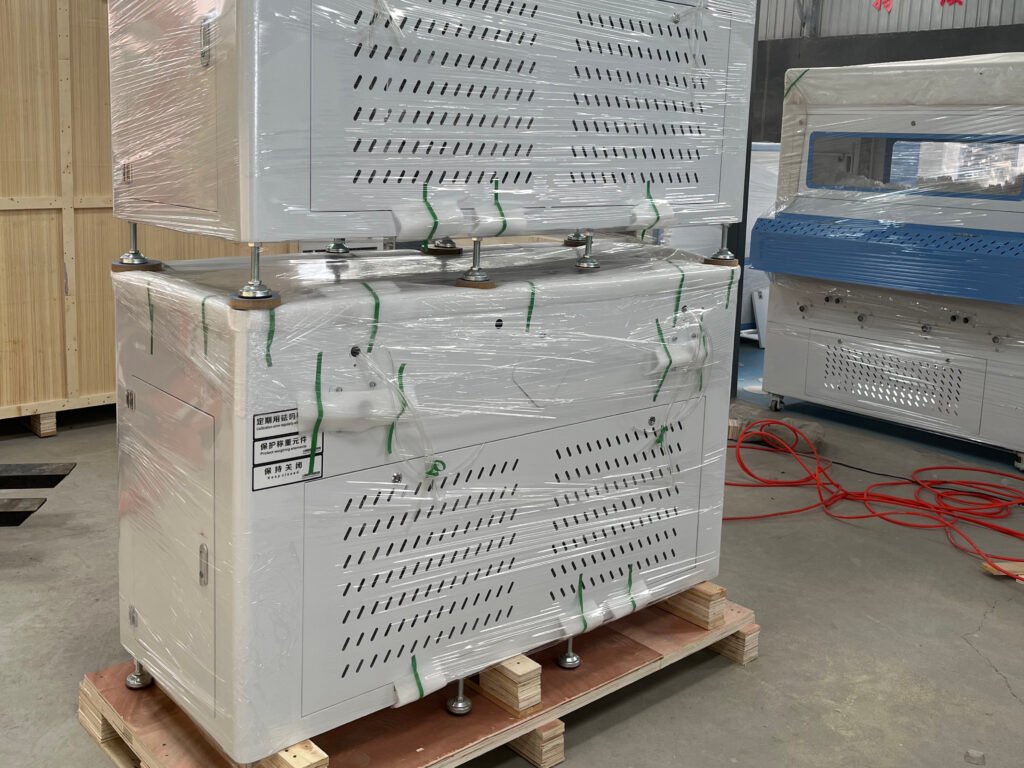

fuda 8f8d wooden case four ports ball fiber blowing machine

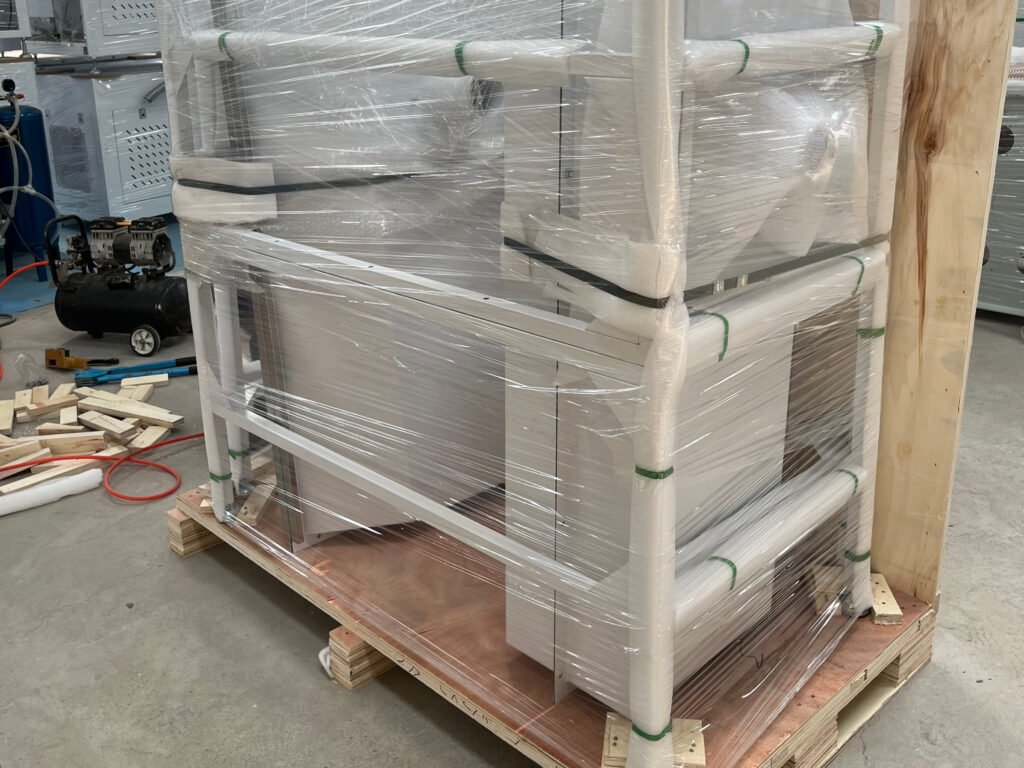

fuda 8f8d wooden case compact synthetic down stuffing machine

Description

Overview: The High-Capacity Solution for Synthetic & Natural Insulation The FUDA 8F8D is a heavy-duty multi-station polyester fiber injection machine explicitly engineered for mass garment production. By combining 4 independent operating ports with a robust 8-scale weighing platform, this commercial outerwear filling equipment allows four operators to work simultaneously. Boasting an exceptional daily output of 1000 to 1200 coats, it is the ultimate staple fiber and down stuffing machine for factories scaling up their winter apparel lines.
Core Features & Innovations
Heavy-Duty Staple Fiber Filling (Max 90g): Unlike standard down machines, the 8F8D is engineered to handle large weights of synthetic insulation. It effortlessly injects up to 90g of staple fiber in a single discharge without any nozzle clogging.
10-15Kg Massive Storage Bin: Minimize your downtime. The oversized 10 to 15Kg material storage bin significantly reduces the frequency of manual refilling, directly improving your assembly line’s overall production efficiency.
High-Speed Compiled PLC: Driven by an intelligent compiled PLC system featuring a blazing-fast 0.4ms communication rate, the 8F8D guarantees stable, lag-free performance alongside a dynamic error accuracy of ±5%.
Versatile 38mm Air-Returning Nozzles: Easily switch between materials. The machine comes equipped with versatile 19mm, 25mm, and ultra-wide 38mm nozzles with air-returning capabilities, ensuring smooth delivery of bulky 0.9-3D staple fibers, ball fibers, and 50-95% natural down.
——————————————————————————–
Application Scenarios
The 8F8D is the definitive choice for high-volume apparel factory automation. It is expertly designed for the rapid, multi-station filling of heavy winter coats, thick polyester-filled puffer jackets, synthetic down vests, and heavy-duty parkas. Its ability to process both natural feathers and heavy synthetic fibers makes it an incredibly versatile asset for any OEM garment manufacturer.
——————————————————————————–
Market Dynamics & Industry Trends
Why integrate the 8F8D into your production line?
The Rise of Synthetic “Vegan” Down: With the increasing consumer demand for cruelty-free and cost-effective winter wear, the market for 3D staple fiber and ball fiber insulation is booming. The 8F8D’s specialized 38mm nozzles and 90g payload capacity are specifically built to capitalize on this trend without the clogging issues found in older machinery.
Maximizing Floor Space Efficiency: Factory real estate is expensive. The 8F8D consolidates 4 operating ports into a single 2.5*4.0m footprint. This allows four workers to operate concurrently from one high-tech core, multiplying output while drastically reducing machinery footprint and overhead.
Hybrid Manufacturing Flexibility: Global apparel brands frequently pivot between natural goose down and synthetic fibers depending on seasonal costs. The 8F8D’s hybrid material compatibility ensures your factory is never bottlenecked by changing material trends.
——————————————————————————–
About FUDA Intelligent Equipment
Shanghai FUDA Intelligent Equipment Co., Ltd. has pioneered the automatic apparel and home textile equipment field since 2010. Integrating modern R&D, advanced production, and comprehensive global after-sales service, we provide cutting-edge automated filling solutions. Backed by over 18 years of technical application experience, the “FUDA” brand proudly empowers over 7,000 global users and partners with 50+ international distributors to elevate the garment manufacturing industry.
