Oil-Free Air Compressor

8HP | 6.0kW | Oil-Free

Motor Power: 6000 W

Speed: 1380 rpm

Air Receiver: 160L

Cylinder: 69.7x22x8 mm

Discharge Air Temperature: ≤ Amb. + 15°C

Power supply: 1 Phase AC220V 6.0kW 50Hz

Footprint: 2.0 × 1.0m(LW)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

Model1500w*4-160L(8HP, 6.0kW)
Max. Pressure7.0 Bar
FAD (Flow Rate)560 L/min
Air Outlet SizeG1/2″=DN15
Noise Level~72 dB(A)
Oil ContentClass 0 (100% Oil-Free)
Cooling MethodAir-cooled
Dimensions (LWH)1.45 x 0.55 x 0.99m
Weight(Kg)N.W. 132, G.W.180
CertificateCE

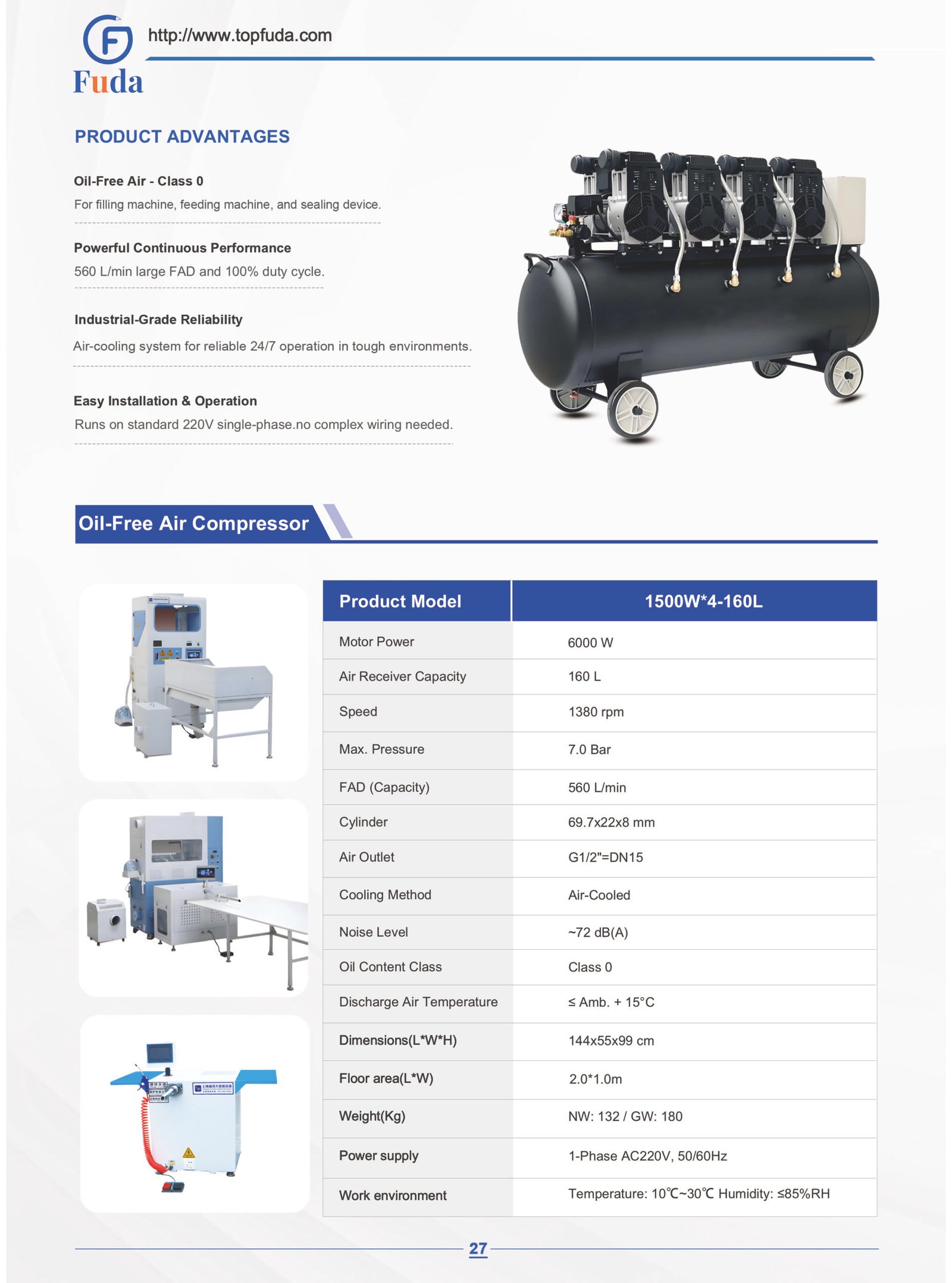

Download 6KW Technical Datasheet (PDF)

Live Operation: Accuracy Fiber Opening and Filling

Packing and Delivery

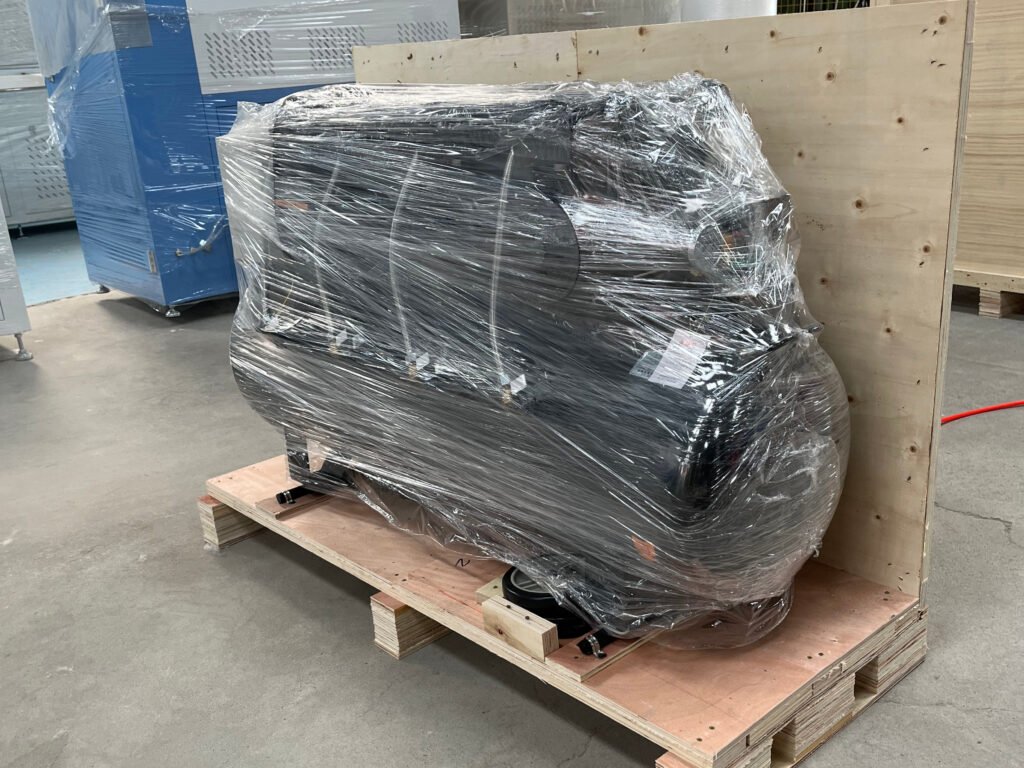

fuda 6kw wooden case oil free air compressor

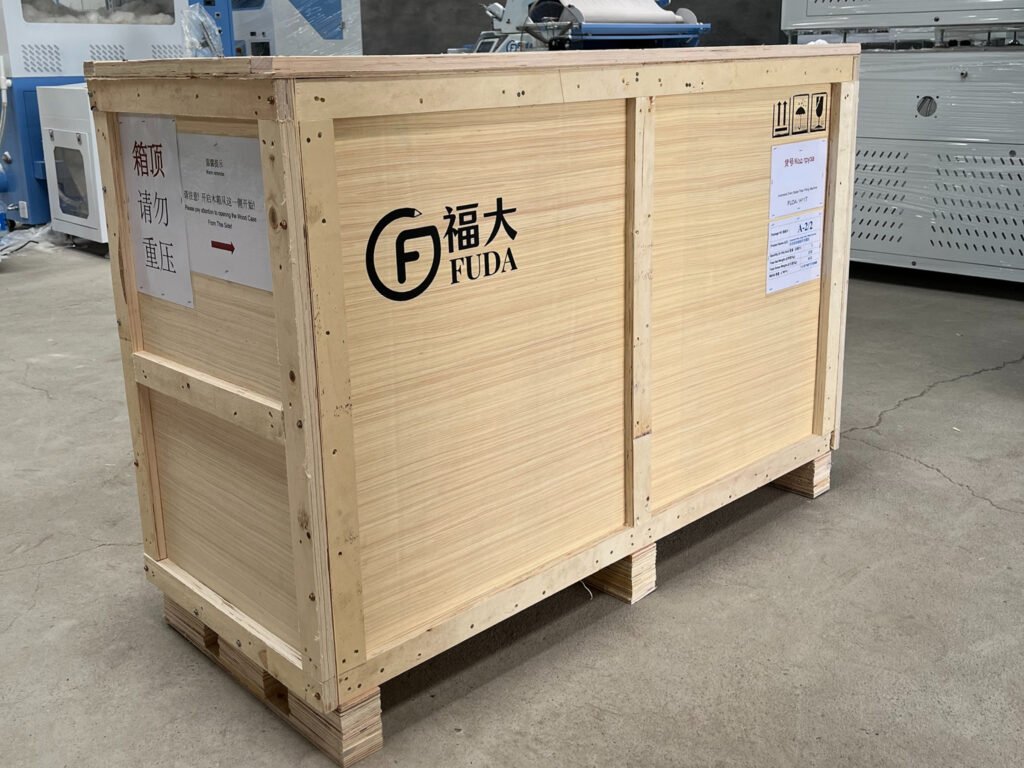

fuda 6kw wooden case oil free piston air compressor
fuda 6kw wooden case oil free scroll air compressor

Description

Overview: Pure Air for Premium Textile Production The FUDA 1500W*4-160L is a robust industrial oil-free air compressor specifically designed for environments where air purity is non-negotiable. Powered by a heavy-duty 6000W motor setup and featuring a large 160L air tank, it delivers a massive Free Air Delivery (FAD) rate of 560 L/min. It is the ultimate pneumatic power source for garment factories requiring continuous, 100% oil-free operation.
Core Features & Innovations
Class 0 Oil-Free Air: Protect your expensive fabrics and filling materials. This compressor guarantees Class 0 oil-free air, ensuring zero risk of oil contamination in your down feathers, synthetic fibers, or final garments.
Powerful Continuous Performance: Engineered for high-demand factory floors, it boasts a 100% duty cycle, providing reliable 24/7 operation even in tough industrial environments.
Industrial-Grade Air Cooling: The advanced air-cooling system actively manages temperatures, maintaining discharge air at a safe ≤ Amb. + 15°C to prevent moisture buildup in your pneumatic lines.
Plug-and-Play Easy Installation: Unlike heavy 3-phase compressors, this unit runs on standard 220V single-phase power, meaning no complex wiring or expensive electrical upgrades are needed to get your assembly line running.
——————————————————————————–
Application Scenarios
Because it guarantees Class 0 air purity, the 1500W*4-160L is specifically engineered for sensitive textile factory automation. It is the perfect pairing for precision automatic down filling machines, high-capacity material feeding machines, and ultrasonic sealing devices that require pristine air to function flawlessly.
——————————————————————————–
Market Dynamics & Industry Trends
Why choose the 1500W*4-160L oil-free compressor?
Zero-Defect Quality Control: Oil spots from standard compressors can completely ruin expensive down jackets or luxury bedding. The global standard for textile pneumatics is shifting strictly to Class 0 Oil-Free systems to eliminate this costly material waste.
Agile Manufacturing: With its standard 1-Phase 220V power supply, this 6000W unit brings industrial-grade pneumatic power to smaller workshops and sample rooms without requiring heavy industrial infrastructure.
Maximum Uptime: High-speed automatic filling lines cannot afford pressure drops. The 160L receiver capacity combined with a 560 L/min generation rate ensures your multi-port filling machines never starve for air during peak production cycles.
——————————————————————————–
About FUDA Intelligent Equipment
Shanghai FUDA Intelligent Equipment Co., Ltd. has engaged in the automatic apparel equipment field since 2010. As a modern enterprise integrating R&D, production, sales, and after-sales service, we provide high-quality, professional automation. Backed by over 18 years of technical application experience, the “FUDA” brand proudly empowers over 7,000 global users and partners with 50+ global cooperative distributors.
