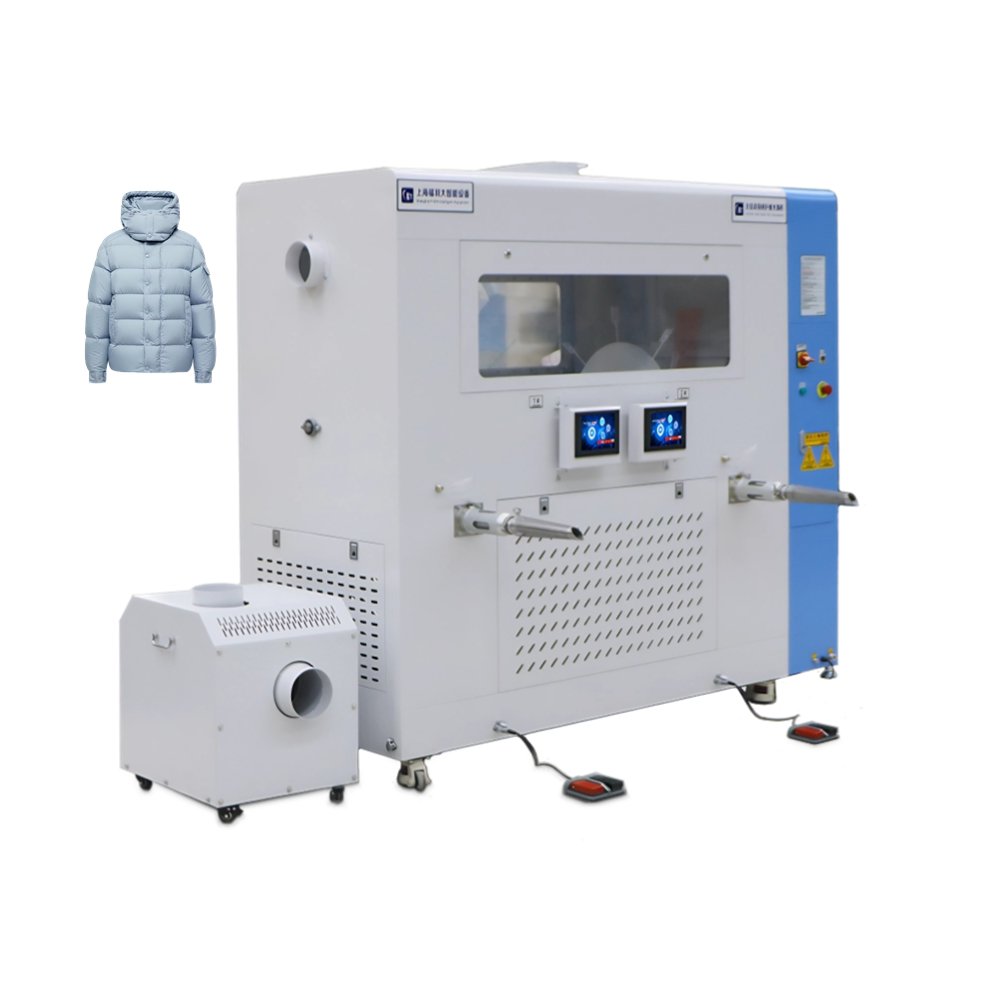

fuda 426c compact down jacket filling machine
fuda 426c dual ports polyester fiber filling machine
fuda 426c compact down jacket filling machine

Staple Fiber Filling Machine

426C | 2 Ports 4 Scales | 600 Coats Daily

Filling range: 0.5-90g

Display accuracy: 0.01g

Nozzles size: 25mm, 38mm

Filling materials: Goose down, Polyester fiber

Power supply: 3 Phase AC380V 3.7kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 3.0*1.5(LW)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

Model426C (2 Ports,4 Scales)
Filling Accuracy± 0.5g – 1.0g
Filling Speed800 – 1200 fillings / hour
Filling Range0.5g – 90g (Customizable)
Display Device7″ HD Touch Screen
Control SystemPLC system
ApplicationDown Jacket, Vest, Pants, Duvet, Sleeping Bag, Hammock
Filling MaterialsFeather Down, Staple Fiber, Ball Fiber
Weight(Kg)N.W400, G.W580
CertificateCE

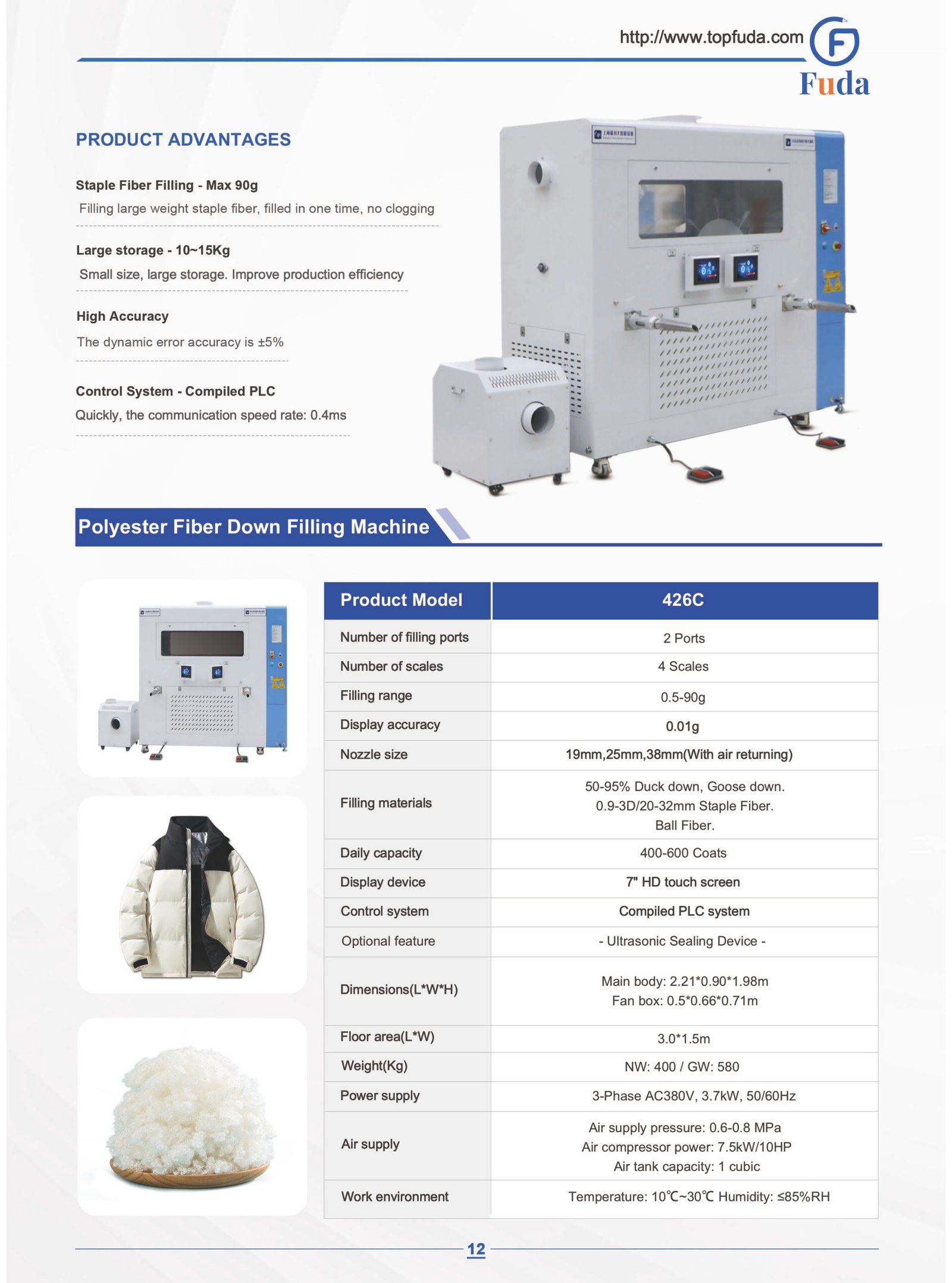

Download 426C Technical Datasheet (PDF)

Live Operation: Accuracy Filling Coat

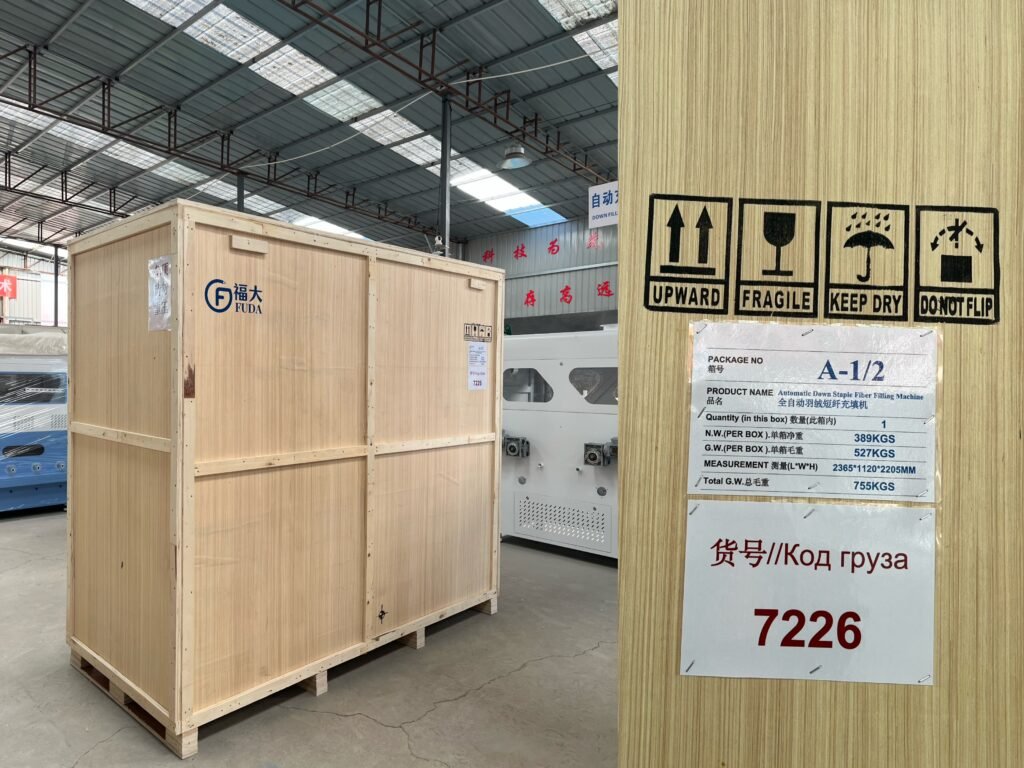

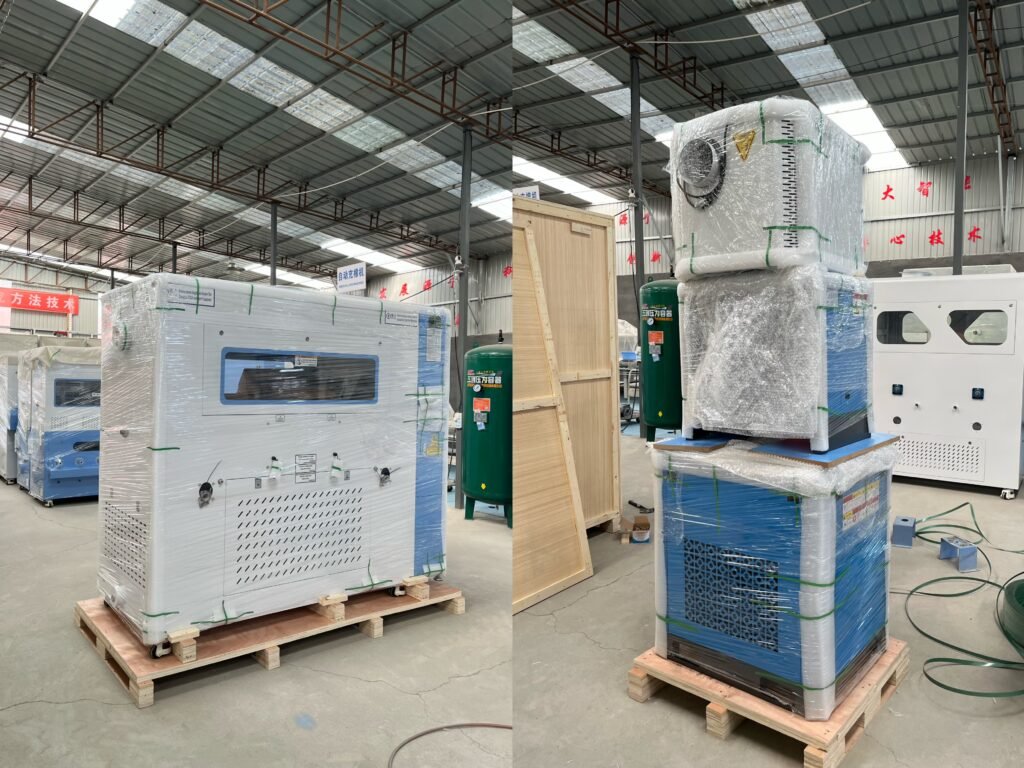

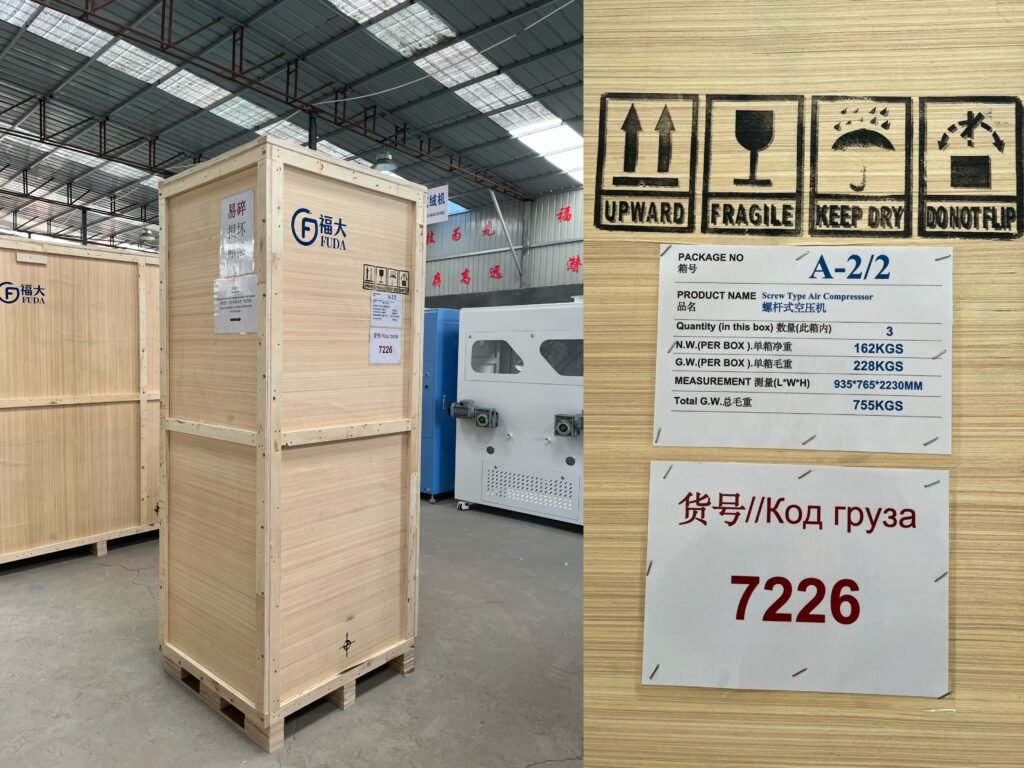

Packing & Delivery

fuda 426c wooden case small down jacket filling machine
fuda 426c packing case automatic padding machine
fuda 426c wooden case automatic filling machine

Description

Overview:
The Ultimate Heavy-Duty Stuffing Solution . The FUDA 426C is a professional-grade dual-port polyester fiber stuffing machine engineered specifically for heavier payloads. Equipped with 4 precision scales, this industrial automated down filling equipment effortlessly manages up to 90g of staple fiber in a single injection without clogging. It is the ideal heavy-duty garment manufacturing machinery for producing 400 to 600 premium winter coats daily.
Core Features & Advantages
1. Max 90g Staple Fiber Filling Specially designed for thick winter apparel manufacturing, it smoothly fills large weights of staple fibers in one go, dramatically reducing cycle times.
2. 10-15kg Large Storage Capacity Despite its compact floor footprint, it features an upgraded high-capacity storage bin. This significantly reduces refill frequency and improves production efficiency on your garment assembly line.
3. High Precision & Ultra-Fast PLC Functioning as a highly reliable synthetic down injection machine, it is powered by a compiled PLC control system with a blazing-fast 0.4ms communication speed. It consistently maintains a dynamic error accuracy of ±5%.
4. Versatile Nozzle Configurations Includes 19mm, 25mm, and 38mm standard nozzles featuring air-returning technology to accommodate diverse puffer jacket stuffing requirements and prevent material blockages.
5. Optional Upgrade: Seamless Ultrasonic Sealing. Enhance your outerwear production line with an optional ultrasonic sealer. It creates a clean, needle-free closure for the filling ports, eliminating the risk of down leakage in premium garments.
Application Scenarios
Perfect for high-volume winter wear production, the 426C excels as a commercial jacket stuffing machine. It is widely used by apparel factories for effectively filling heavy winter coats, thick vests, and outdoor puffer jackets using 50-95% down, 0.9-3D staple fibers, or ball fibers.
About FUDA
Shanghai FUDA Intelligent Equipment Co., Ltd. has been a leading innovator in apparel factory automation since 2010. We specialize in the R&D, production, and sales of high-quality filling technology. Serving over 7,000 global users across 50+ countries, the “FUDA” brand is synonymous with reliability, precision, and efficiency in the textile machinery industry.
