image 1908c automatic face up fabric spreading machine

Face-Up Fabric Spreader

1908C | Width 1900mm | with Cutter

Width of Fabric: 1900mm

Width of Table: 2130mm

Cutting Thickness: 0.1-20mm

Application Fabric: Woven fabric, Heavy fabric

Power supply: 1 Phase AC220V 2.5kW 50Hz

Air supply: 0.4-0.6MPa 2.2kW

Footprint: 3.0*1.5(WH)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

Model1908C (1900mm)
Spreading Speed0-100m/min (Adjustable)
Spreading methodOne-way spreading: face up
Cutting ConfigurationSingle Horizontal Cutter, Auto Sharpening
Fabric Pressing DeviceFabric Presser
Fabric Unwinding DeviceU-shaped Unwinding Chute, Standard Unwinder
Control SystemHD 10″ Touch screen, Remote control, Compiled PLC (0.4ms)
Drive DeviceServo motor
Weight(Kg)N.W400, G.W600
CertificateCE

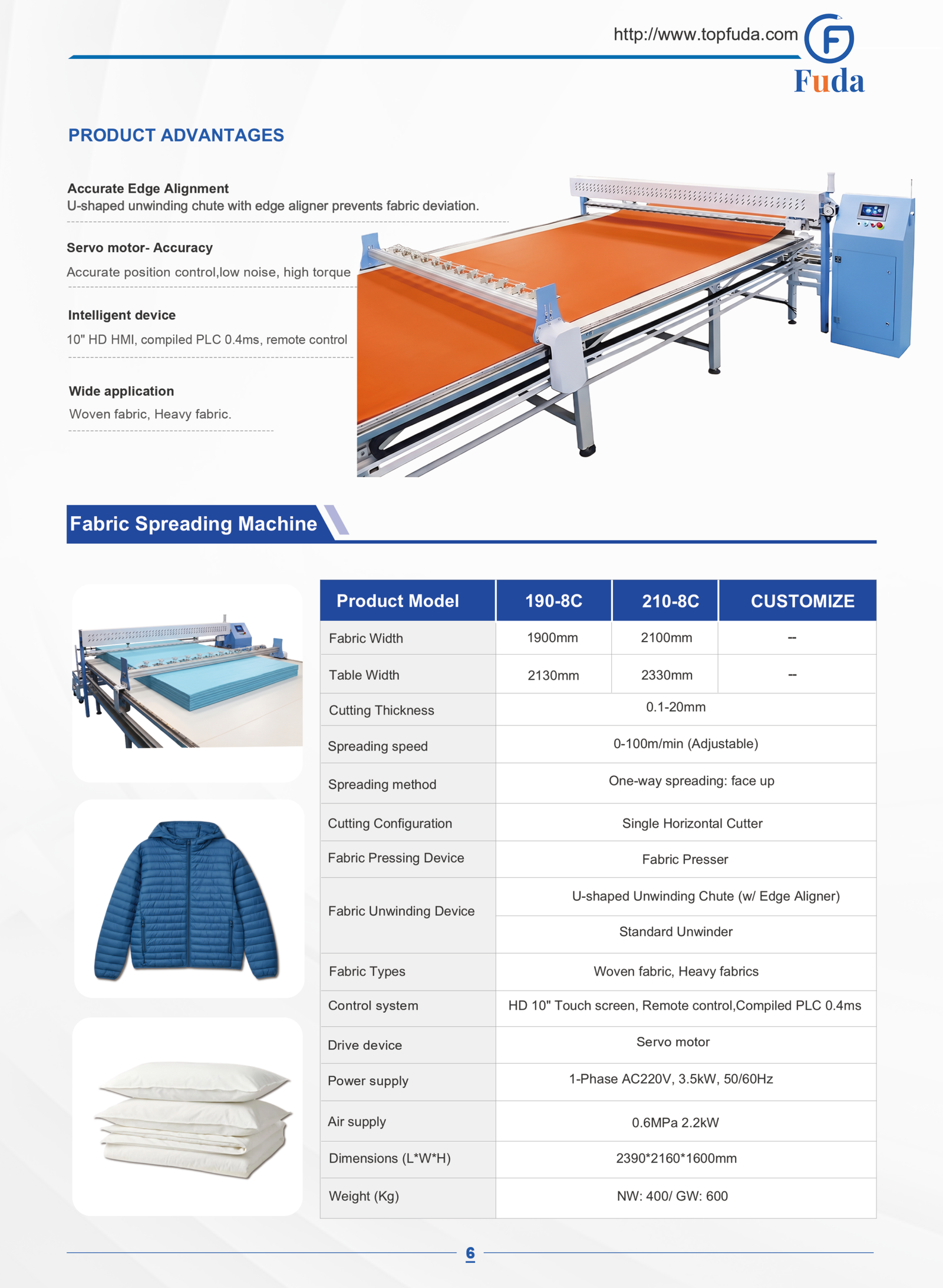

Download 1908c Technical Datasheet (PDF)

Live Operation: Accuracy Fabric Spreading

Packing and Delivery

fuda 426c wooden case small down jacket filling machine
fuda 426c packing case automatic duck down stuffing machine
fuda 426c packing case automatic ball fiber filling machine

Description

Overview:
High-Speed Precision Fabric Laying The FUDA 190-8C is a highly versatile automatic fabric spreading and laying machine engineered for the modern cutting room. Utilizing a high-torque servo motor and a rapidly compiled PLC system, this commercial textile spreading equipment flawlessly unrolls and layers materials at adjustable speeds up to 100 meters per minute.
Core Features & Innovations
Accurate Edge Alignment: The specialized U-shaped unwinding chute features a highly sensitive edge aligner that prevents fabric deviation during the spreading process, ensuring completely uniform layers.
Built-In Auto-Sharpening Cutter: A single horizontal cutter neatly slices each layer up to 20mm thick, while an auto-sharpening mechanism keeps the blade in optimal condition for continuous production.
Intelligent PLC Control: Operators can manage speed and alignment directly via an intuitive 10″ HD touch screen or with a convenient remote control, both powered by a blazing-fast 0.4ms PLC system.
Servo Motor Precision: The advanced servo drive system guarantees accurate position control while maintaining incredibly low noise and high torque.

Application Scenarios
The 190-8C is a crucial piece of apparel factory machinery designed to handle a vast array of textiles. Its powerful pressing device and adjustable speed make it the definitive choice for laying down delicate knitted fabrics, standard woven fabrics, and thick, heavy fabrics in preparation for CNC cutting.

Market Dynamics & Industry Trends
Why upgrade to the 190-8C Spreading Machine?
Eliminating Edge Waste: Misaligned fabric edges lead to massive material waste during the cutting phase. The 190-8C’s U-shaped unwinding chute perfectly aligns edges automatically, instantly protecting your raw material margins.
Unlocking Production Bottlenecks: With an adjustable spreading speed of up to 100m/min, this machine ensures your high-speed automated cutters always have perfectly laid material ready, vastly increasing daily factory output.
Heavy Fabric Adaptability: As consumer trends shift toward thicker technical garments and winter coats, the 190-8C’s robust high-torque servo motor easily handles heavy fabrics that traditional machines struggle to pull.

About FUDA Intelligent Equipment
Shanghai FUDA Intelligent Equipment Co., Ltd. has engaged in the automatic apparel and home textile equipment field since 2010. As a modern intelligent equipment enterprise integrating R&D, production, sales, and comprehensive after-sales service, we provide high-quality automation. Backed by over 18 years of technical application experience, the “FUDA” brand proudly empowers over 7,000 global users and partners alongside 50+ international distributors.
