Duvet Filling Machine

H412D | 1 Port 4 Scales | 150 Duvets Daily

Filling range: 0.2-35g

Display accuracy: 0.01g

Nozzles size: 32mm

Filling materials: Goose down, Polyester fiber

Power supply: 1 Phase AC220V 2.0kW 50/60Hz

Air supply: 0.6-0.8MPa, Air compressor: 7.5kW

Footprint: 2.0*3.0(LW)

Inquiry
Catalog

Quick Response via WhatsApp: +86 13524526625

Specifications

ModelH412D(1 Filling Port, 4 Weighing Scales)
Filling Accuracy± 0.1g – 0.3g
Filling Speed800 – 1200 fillings / hour
Filling Range0.2g – 35g (Customizable)
Display Device10″ HD Touch Screen
Control SystemPLC system
ApplicationDuvet, Sleeping Bag, Hammock
Filling MaterialsFeather Down, Staple Fiber, Ball Fiber
Weight(Kg)N.W360, G.W520
CertificateCE

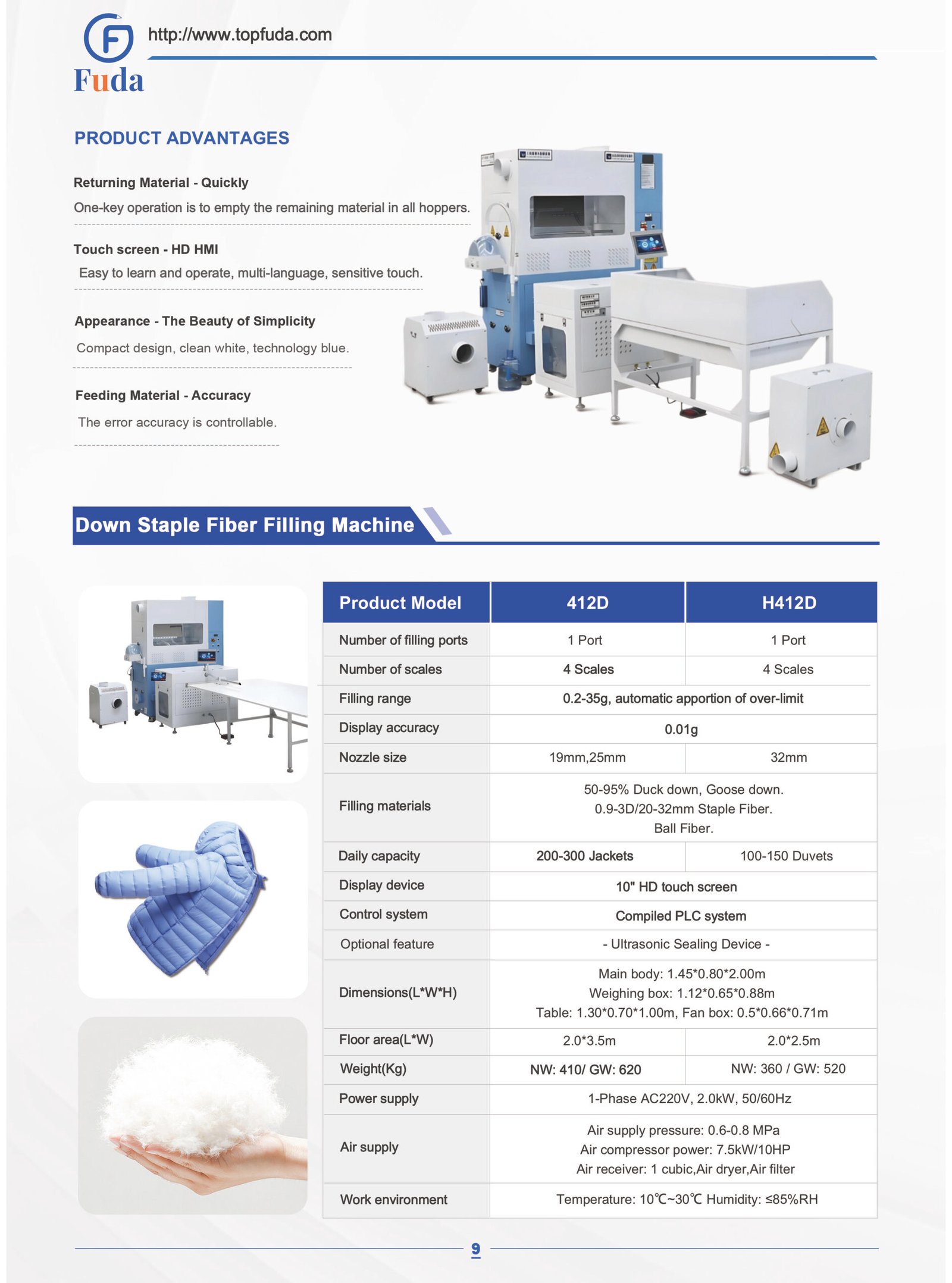

Download H412D Technical Datasheet (PDF)

Live Operation: Accuracy Filling Duvet

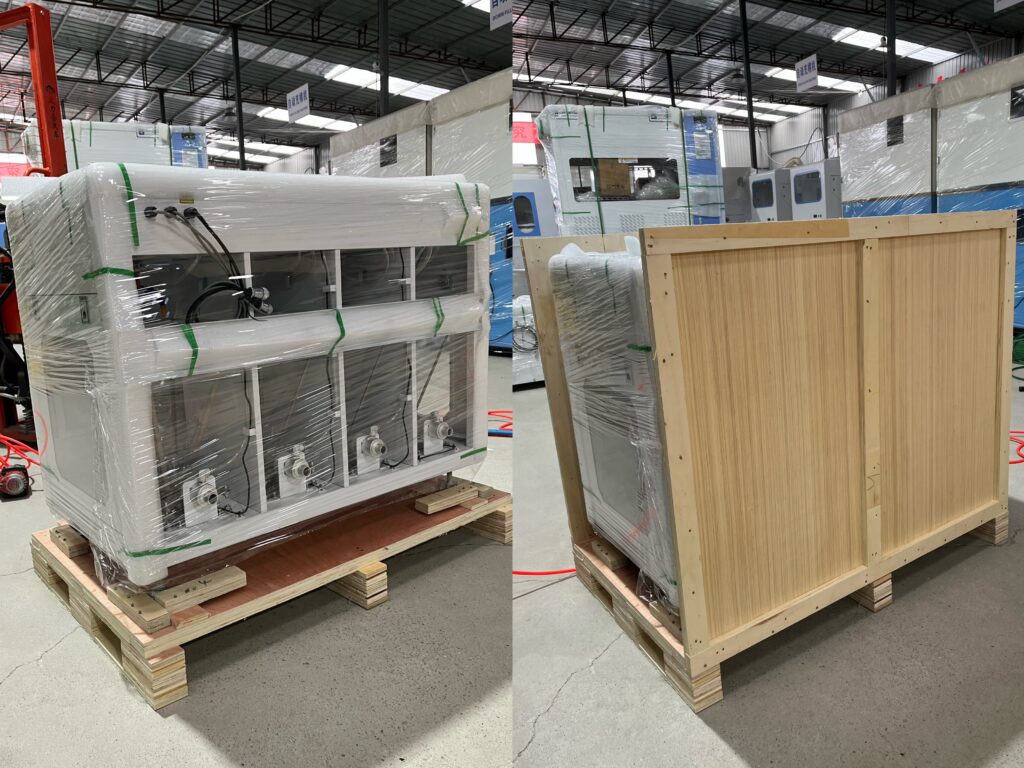

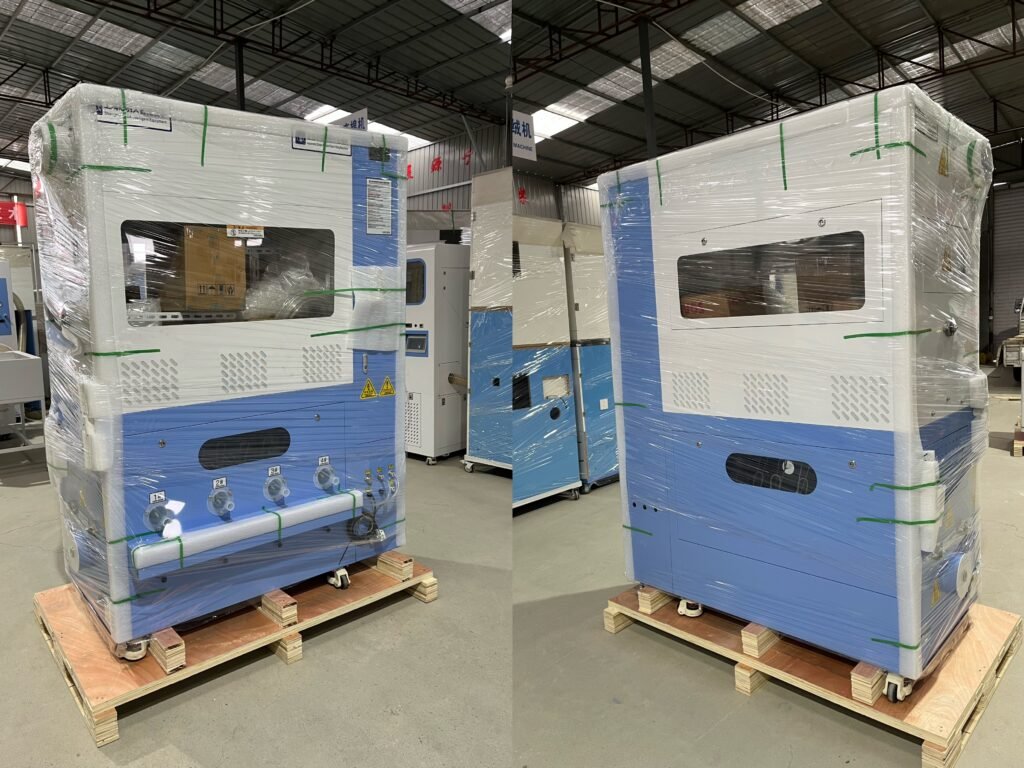

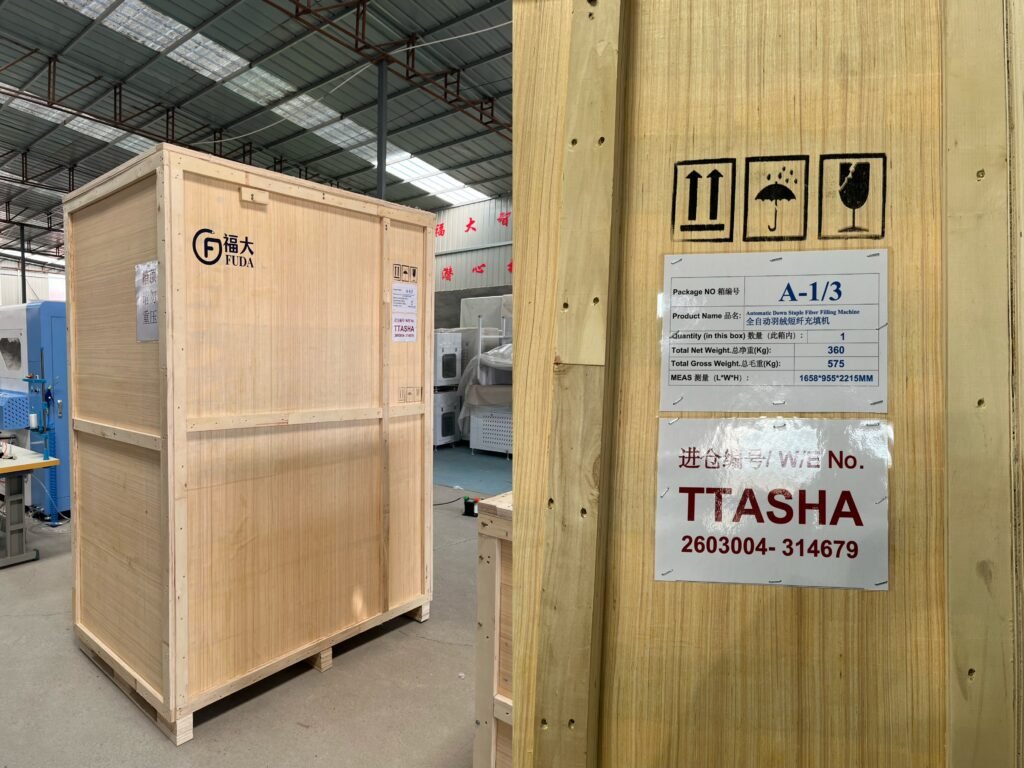

Packing & Delivery

img 2228
img 2229
img 0861

Description

Overview:
The Intelligent Solution for Premium Bedding The FUDA H412D is a specialized automatic goose down duvet filling machine designed for modern home textile factories. Embracing the “Beauty of Simplicity” with its clean white and technology blue design, this machine offers a compact footprint of just 2.0*2.5m. Functioning as a high-end commercial home textile manufacturing equipment, it guarantees a stable daily output of 100 to 150 duvets, making it the ultimate single nozzle quilt stuffing equipment for growing businesses.
Core Features & Advantages
1. 4-Scale Precision Quilt Filling Equipped with an advanced intelligent comforter weighing system, it accurately manages micro-payloads of 0.2-35g with an automatic apportionment function for over-limit materials. This prevents material waste during your premium duvet assembly process.
2. Specialized 32mm Nozzle Unlike standard apparel machines, the H412D features a wide 32mm nozzle. This design ensures rapid, clog-free injection of heavy materials, perfectly suiting the needs of winter blanket production.
3. 10″ HD HMI & PLC Control Operate this synthetic fiber blanket filler with total ease. The 10-inch HD multi-language touch screen and rapid compiled PLC system guarantee a highly sensitive, lag-free user experience for your operators.
4. One-Key Quick Material Return Simplify your home textile production workflows. The built-in rapid return system allows operators to empty all remaining down or fiber in the hoppers with a single keystroke, reducing downtime during changeovers.
5. Optional Upgrade: Seamless Ultrasonic Sealing Elevate your goose down comforter manufacturing standards. The optional ultrasonic sealer creates a needle-free, durable closure for the filling ports, eliminating the risk of down leakage.
Application Scenarios
The H412D is an exceptional heavy-duty bedding and outdoor gear stuffing machine, tailored specifically for home textile automation. It is perfectly suited for effectively filling high-quality duck down duvets, goose down comforters, outdoor sleeping bags, down hammocks, and synthetic fiber winter quilts. The machine smoothly handles 50-95% natural duck and goose down, 0.9-3D/20-32mm staple fibers, and ball fibers to ensure maximum fluffiness
About FUDA
Shanghai FUDA Intelligent Equipment Co., Ltd. has been a pioneer in the apparel and home textile automation machinery field since 2010. Integrating R&D, production, sales, and comprehensive after-sales service, we specialize in high-quality intelligent filling technology. Serving over 7,000 global users and partnering with 50+ international distributors, the “FUDA” brand is globally trusted for its innovation, precision, and reliability.
